| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | OLS-1305 Optical Light Source | Delivery: | FOB |
|---|---|---|---|
| Model: | OLS-1305 | Applicable Fiber: | SM ,MM |
| Laser Type: | FP-LD(others Specify On Requests) | Stability(dB,15min,20℃): | ±0.1 |
| Highlight: | 1550 CW Fiber Testing Tool,Fiber Testing Tool FP-LD 1310,Optical Light Source OLS MM |
||

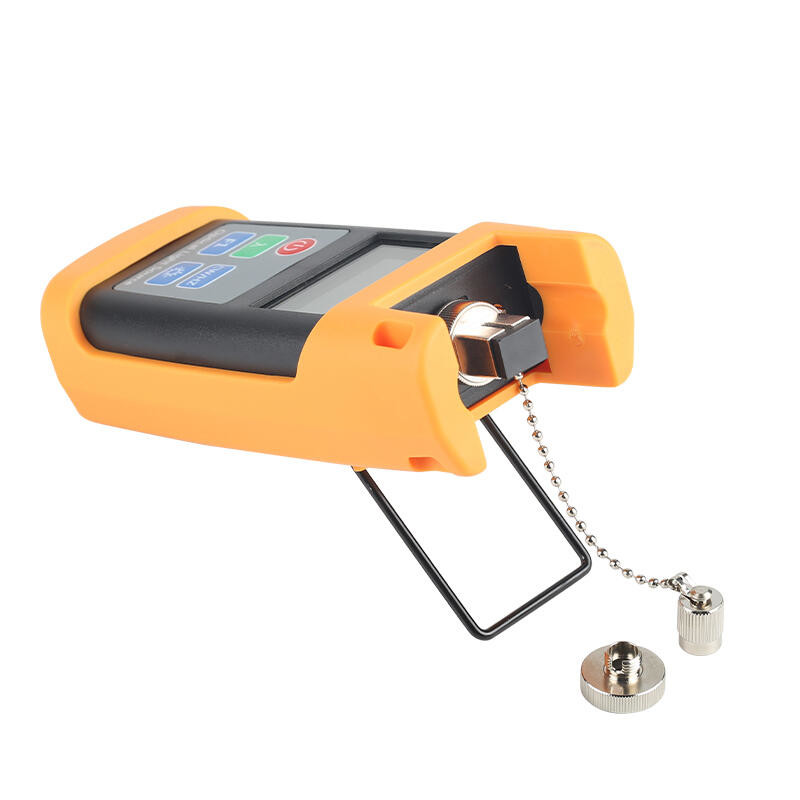

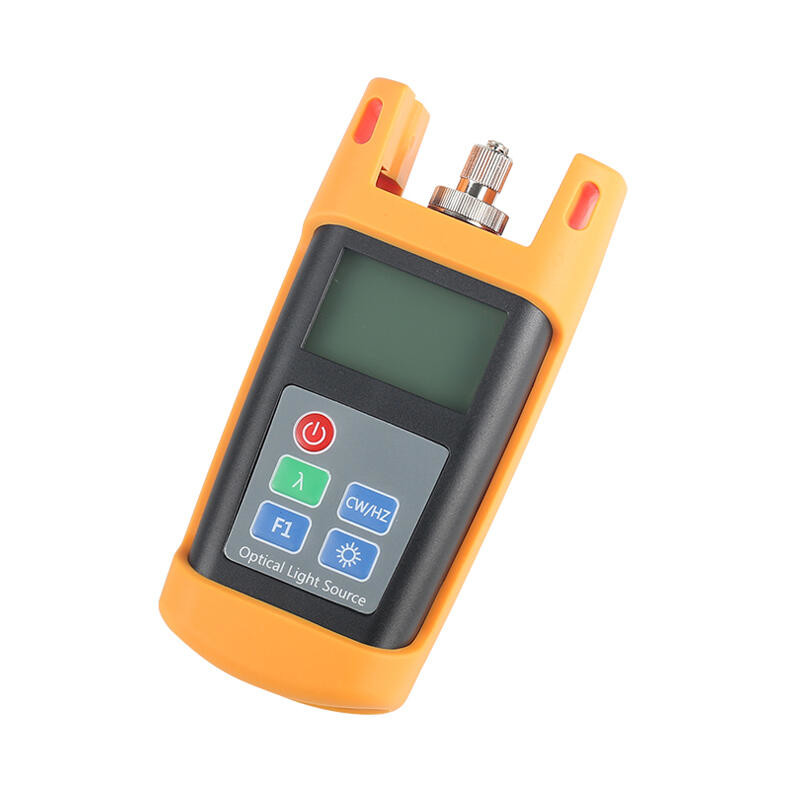

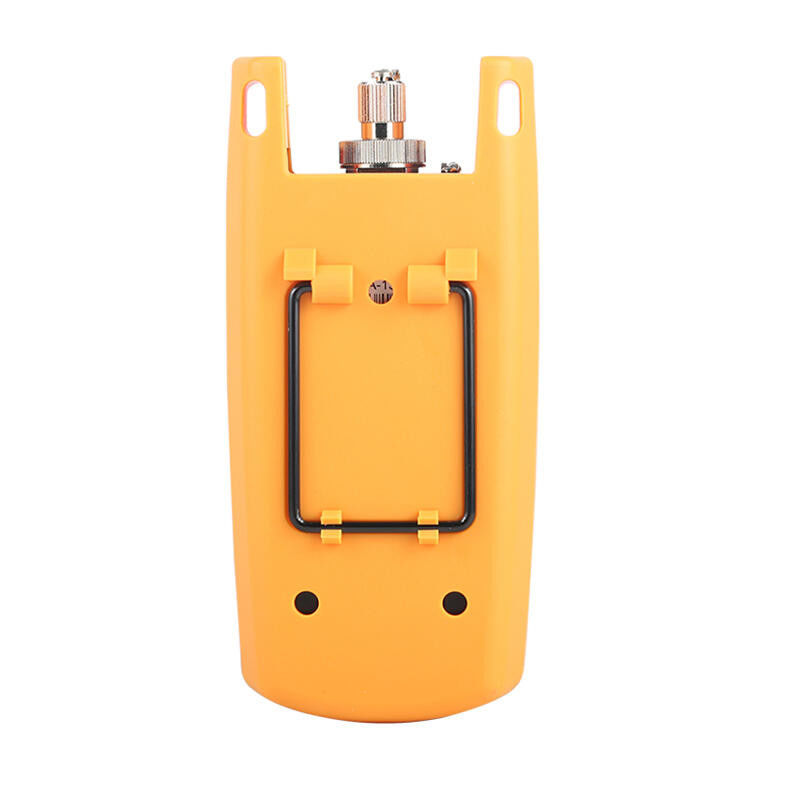

OLS-1305 fiber light source is a handheld fiberlight source, designed for the fiber optical network installation, acceptance, and maintenance. Used with OPM-7001, can provide a accurate fiber network solution. According with client’s requirements, OLS-1305 can provide 1~4 wavelength with stable output power, and featured with continuous adjustable output power. The Intelligent backlight control function can save the power, OLS-1305 have smooth appearance, good touching, and friendly design, which can meet clients’ largest requirements.
Features
Wave ID information can be transmitted when used with OPM-7001 Optical Power Meter.
Tone generation, 270HZ,330HZ,1KHZ,2KHZ
Output power can be adjustable
Output power value is shown on LCD display
Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)
AA alkaline and AC adapter for power supply
Low battery indication
|
Model |
OLS-1305 |
|
Operating wavelength(nm) |
1310/1550 (others specify on requests) |
|
Applicable fiber |
SM ,MM |
|
Laser type |
FP-LD(others specify on requests) |
|
Maximum Output Power(dBm) |
-5(can be adjustable, others specify) |
|
Adjustable step size(dBm) |
＜0.5 (adjustable between -5~-12dBm) |
|
Stability(dB,15min,20℃) |
±0.1 |
|
Stability(dB,30min,20℃) |
±0.05 |
|
Modulation(Hz) |
CW,270,330,1K,2K |
|
Fiber Port |
FC/PC or FC,SC,ST interchangeable |
|
Alkaline Battery |
3*AA,1.5V |
|
Power Supply Adaptor(V) |
8.4 |
|
Battery Operating time(h) |
45 |
|
Operation Temperature(℃) |
-10～+60 |
|
Storage Temperature(℃) |
-25～+70 |
|
Dimension(mm) |
180*83*28 |
|
Weight(g) |
360 |
|
No. |
Name |
Qty |
|
1 |
Optical Light Source |
1 |
|
2 |
User Manual |
1 |
|
3 |
USB cable |
1 |
|
4 |
CD |
1 |
|
5 |
1.5V AA battery |
3 |
|
6 |
Power Supply Unit |
1 |
|
7 |
Cotton Swabs |
1 |
|
8 |
Carry Bag |
1 |
