| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | ADASCUSMSX | Operating Temperature: | -40~75℃ |
|---|---|---|---|
| Insertion Loss (Typical): | ≤0.3dB | Return Loss: | ≥45dB |
| High Light: | 45db Fiber Optic Passive Components 0.3db,Fiber Optic Passive Components 45db,passive adapter component iso9001 |
||

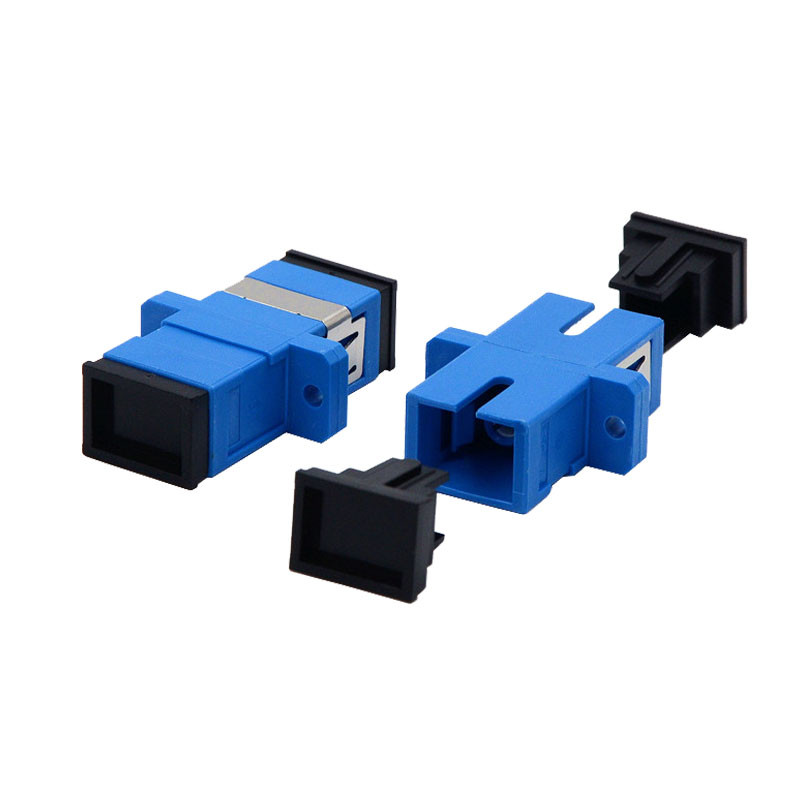

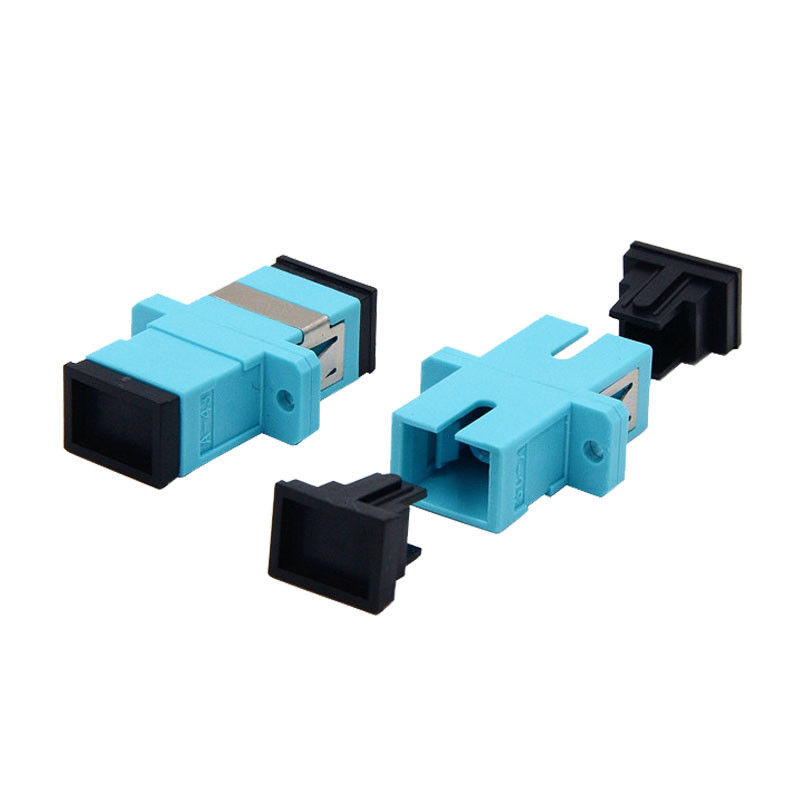

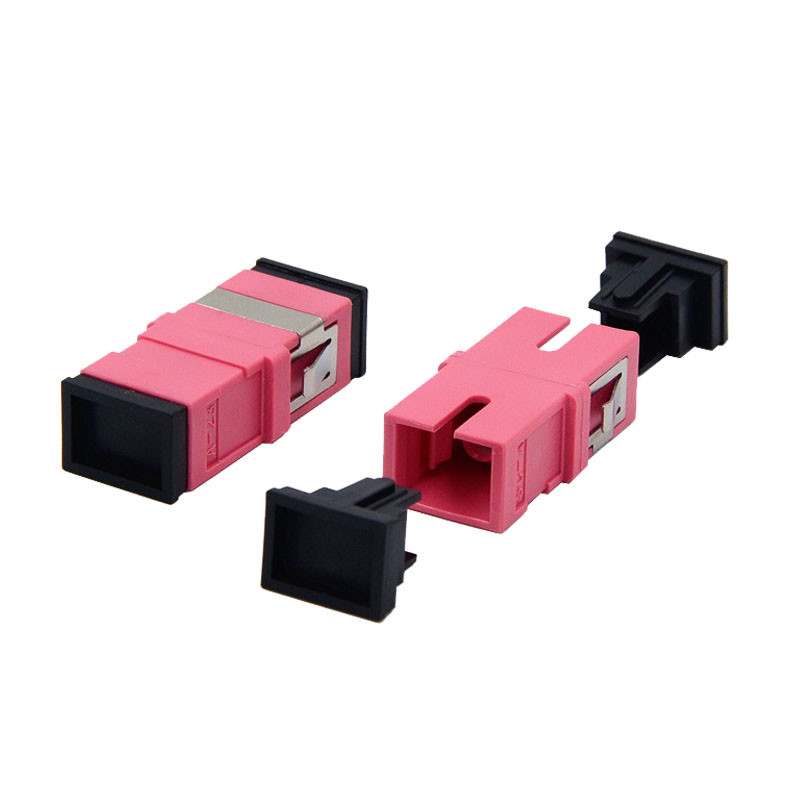

SC adapters join precision anti-rotation key and corrosion resistant body. They are assembled in panels and allow connecting pigtails with patchcords. For every type of connector, there is equivalent type of adapters. Generally there are 2 types of alignment sleeve within an adapter-phosphor bronze for multimode and ceramic for singlemode. SC adapters can be well used in ethe case of CATV & CCTV system.
Applications
• Fiber Optic Telecommunications
• LAN (Local Area Network)
• FTTH (Fiber To The Home)
• CATV&CCTV System
• High speed transmission systems
• Fiber optic sensing
• Industtial, Mechanical and Military
| Parameter | Unit | SC | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Return Loss | dB | ≥45 | ≥50 | ≥55 | ≥30 |
| Exchange ability | dB | ≤0.2 | |||
| Repeat ability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | ℃ | -40~75 | |||
| Storage Temperature | ℃ | -45~85 | |||
