| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | ADABARESMSX | Storage Temperature: | -45~85℃ |
|---|---|---|---|
| Durability: | 1000 Time | ||
| High Light: | APC 0.1db Fiber Optic Passive Components,0.2db Fiber Optic Passive Components,bare fiber adapter ul housing |
||

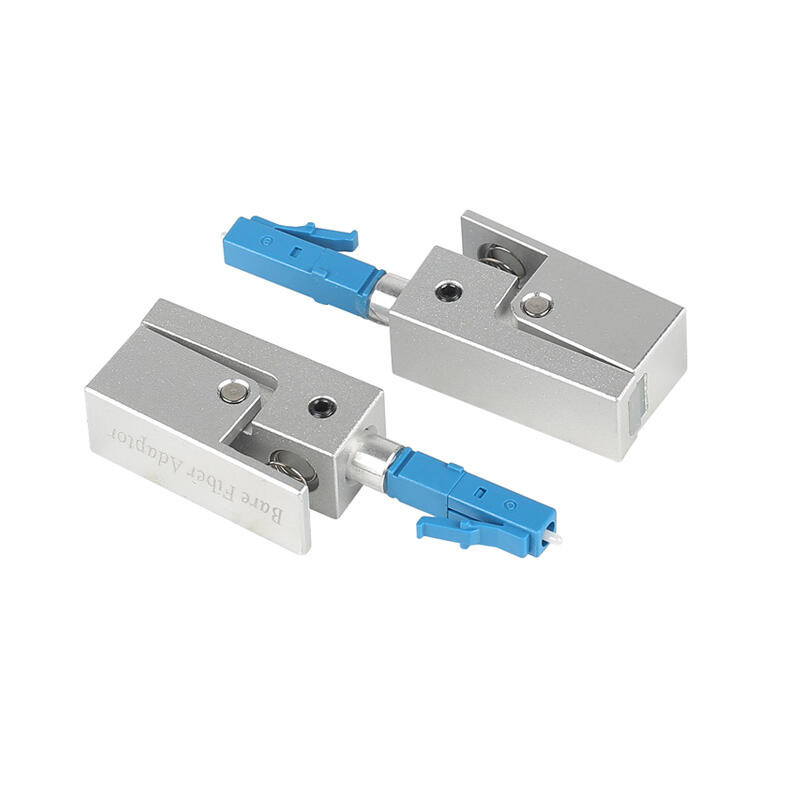

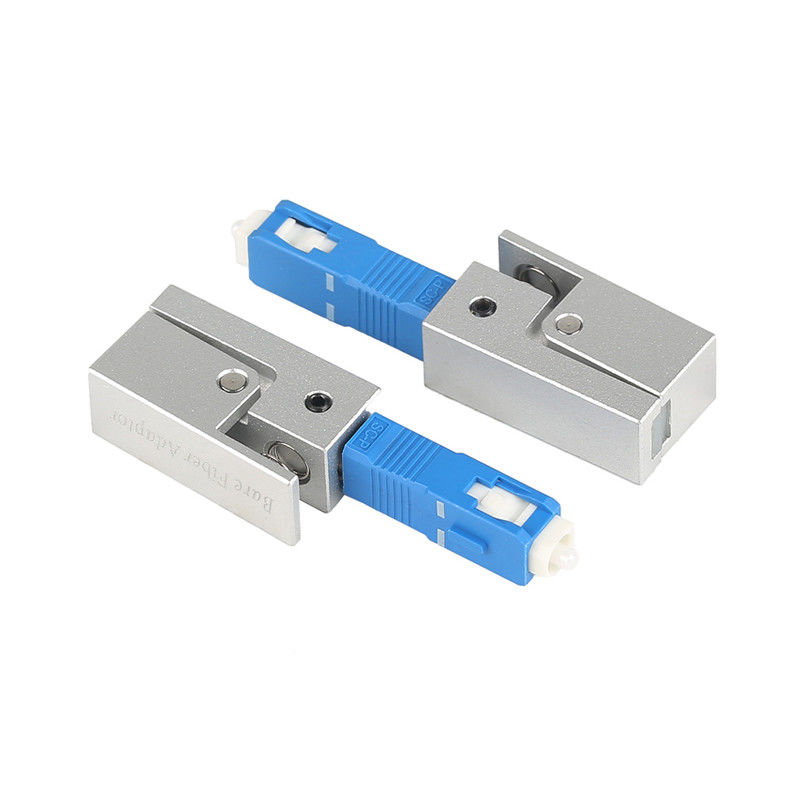

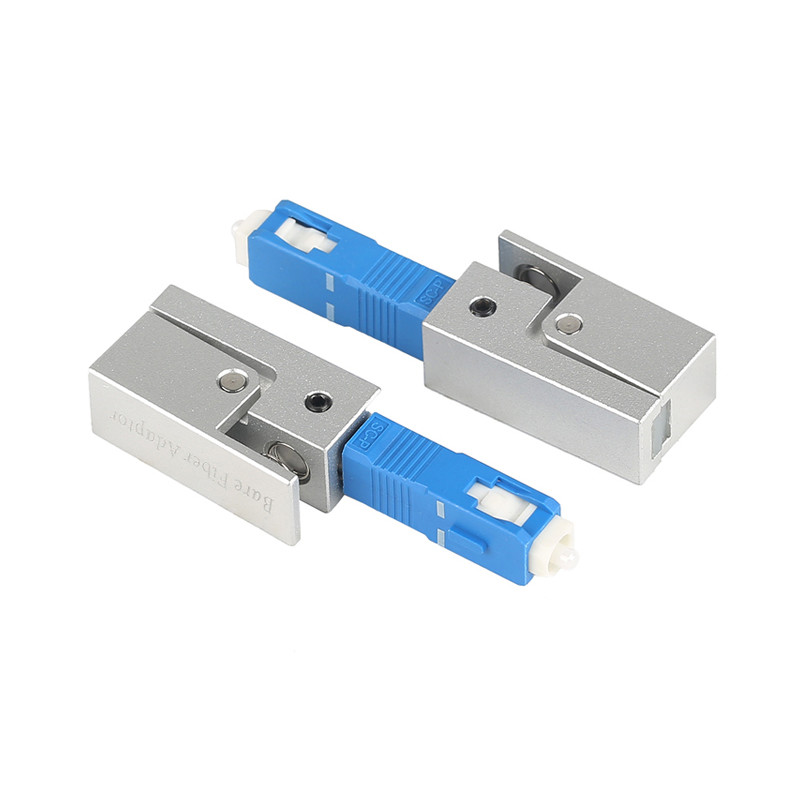

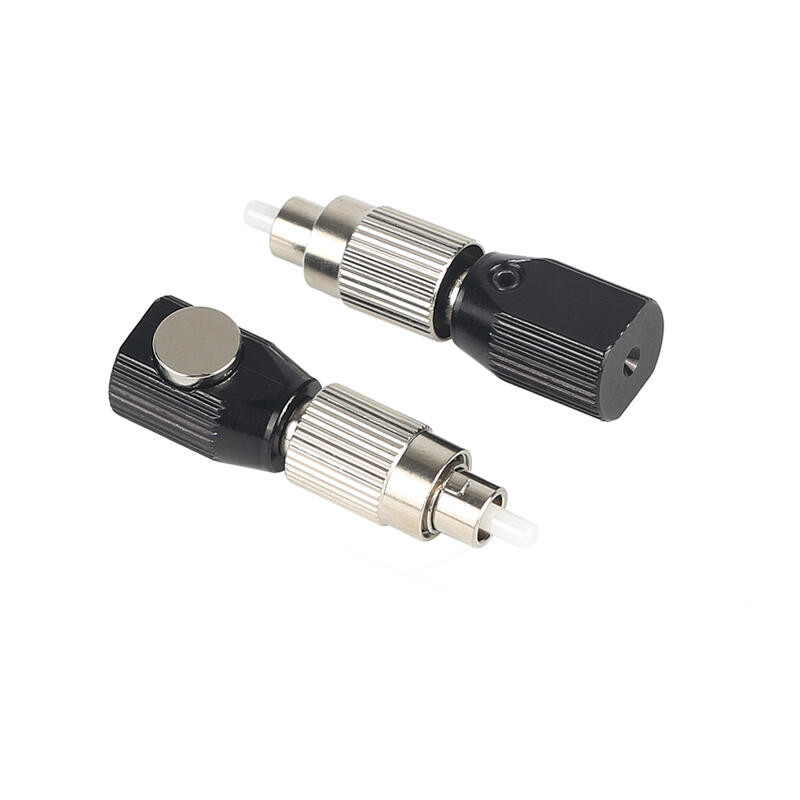

Bare fiber adapter join separated connectors. They are assembled in panels and allow connecting pigtails with patchcords. For every type of connector, there is equivalent type of adapter. Generally there are 2 types of alignment sleeve within an adapter-phosphor bronze for multimode and ceramic for singlemode. In case of MTRJ and MPO, the alignment is carried out by 2 small pins fitted to one of the connectors. And the bare fiber adapter is purely support and lock the connectors together in the distribution box.
Features
• Low insertion loss and back reflection loss
• Ferrule end surface pre-domed
• Precision anti-rotation key and corrosion resistant body
• UL-rated plastic housing
• Telcordia style boots
• Free-floating ceramic ferrule
• Zirconia sleeves or Phosphor bronze sleeves
• D-shaped easily installs into panel mount
• RoHS compliant
Applications
• Fiber Optic Telecommunications
• LAN (Local Area Network)
• FTTH (Fiber To The Home)
• CATV&CCTV System
• High speed transmission systems
• Fiber optic sensing
• Industtial, Mechanical and Military
| Parameter | Unit | SC | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Return Loss | dB | ≥45 | ≥50 | ≥55 | ≥30 |
| Exchange ability | dB | ≤0.2 | |||
| Repeat ability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | ℃ | -40~75 | |||
| Storage Temperature | ℃ | -45~85 | |||
