| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | ADAMTRJSMSX | Repeat Ability: | ≤0.2 DB |
|---|---|---|---|
| Unit: | SC | Return Loss: | 45dB |
| High Light: | Zirconia mtrj to lc adapter,mtrj to lc adapter 0.1dB,fiber optic cable adapter 0.2dB SC |
||

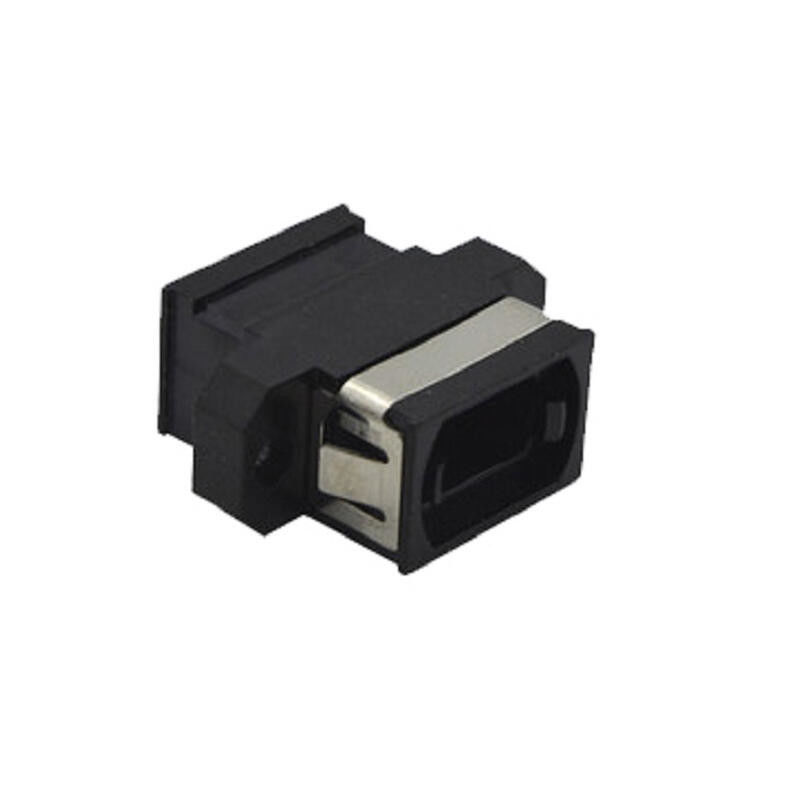

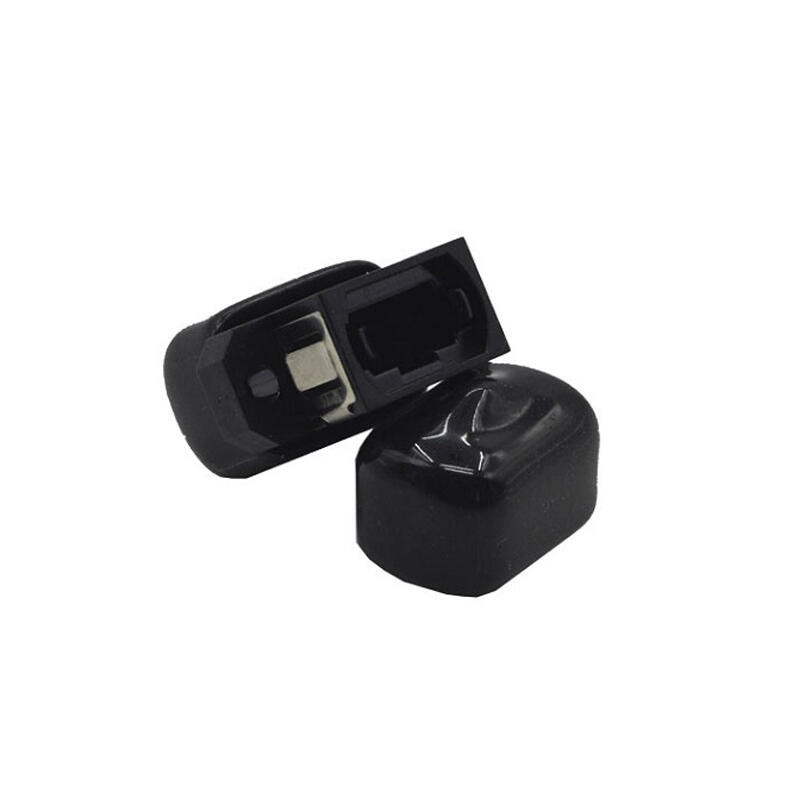

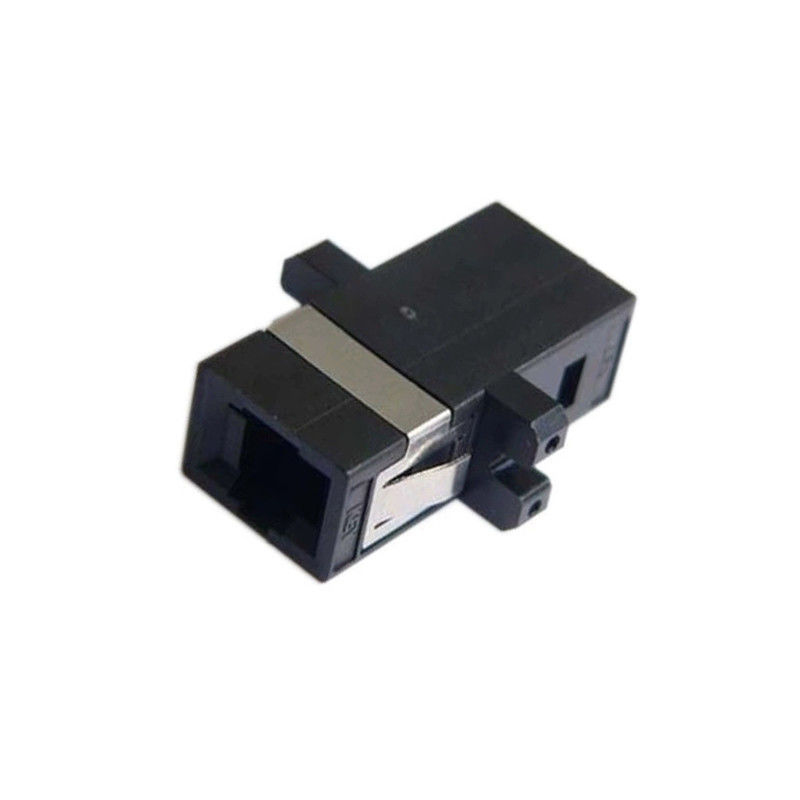

MTRJ adapter joins separated connectors. They are assembled in panels and allow connecting pigtails with patchcords. For every type of connectors, there is equivalent type of adapter. Generally there are 2 types of alignment sleeve within an adapter- phosphor bronze for multimode and ceramic for singlemode. In case of MTRJ, the alignment is carried out by 2 small pins fitted to one of the connectors, the MTRJ adapter is purely support and lock the connectors together in the distribution box.
Features
• Low insertion loss and back reflection loss
• Ferrule end surface pre-domed
• Precision anti-rotation key and corrosion resistant body
• UL-rated plastic housing
• Telcordia style boots
• Free-floating ceramic ferrule
• Zirconia sleeves or Phosphor bronze sleeves
• D-shaped easily installs into panel mount
• RoHS compliant
Applications
• Fiber Optic Telecommunications
• LAN (Local Area Network)
• FTTH (Fiber To The Home)
• CATV&CCTV System
• High speed transmission systems
• Fiber optic sensing
• Industtial, Mechanical and Military
| Parameter | Unit | SC | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Return Loss | dB | ≥45 | ≥50 | ≥55 | ≥30 |
| Exchange ability | dB | ≤0.2 | |||
| Repeat ability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | ℃ | -40~75 | |||
| Storage Temperature | ℃ | -45~85 | |||
