| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | ADASTUSMSX | Exchange Ability: | ≤0.2 DB |
|---|---|---|---|
| Repeat Ability: | ≤0.2 DB | Durability: | >1000 TIME |
| High Light: | 0.1dB Fiber Optic Passive Components,0.2 dB Fiber Optic Passive Components,Fiber Optic Adapter MT RJ |
||

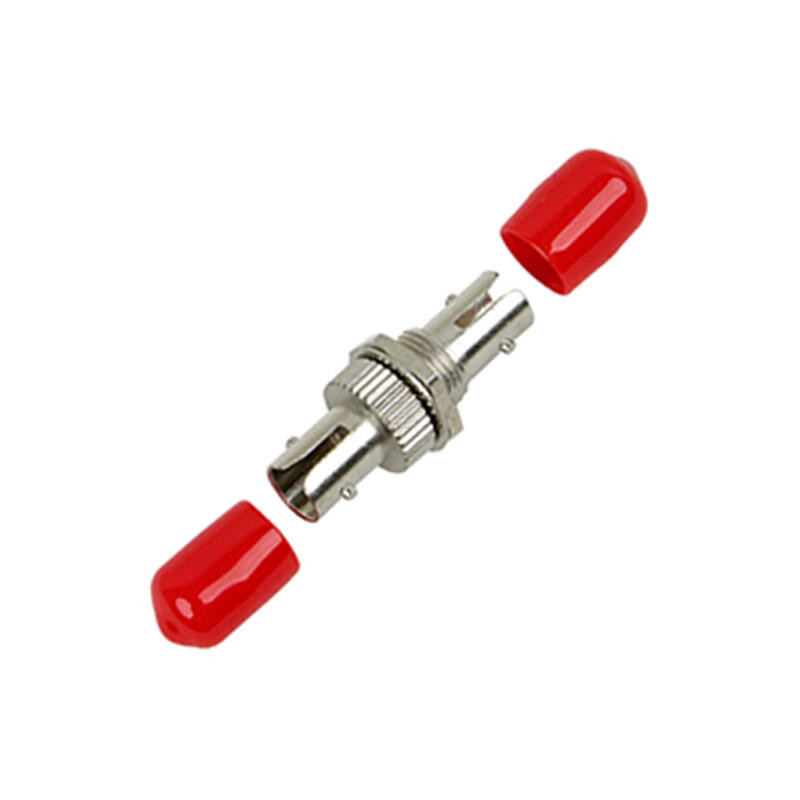

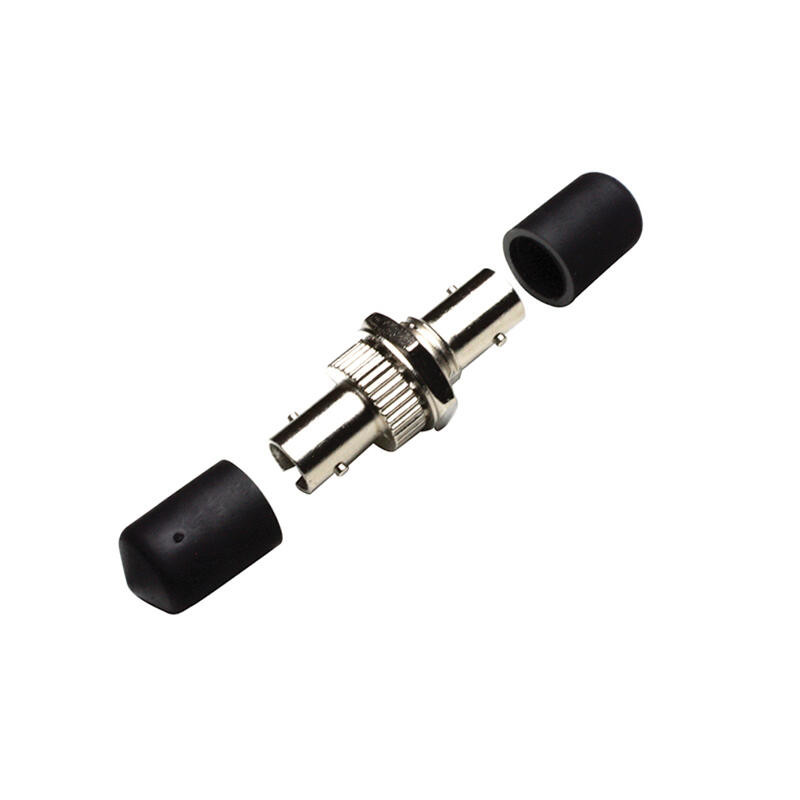

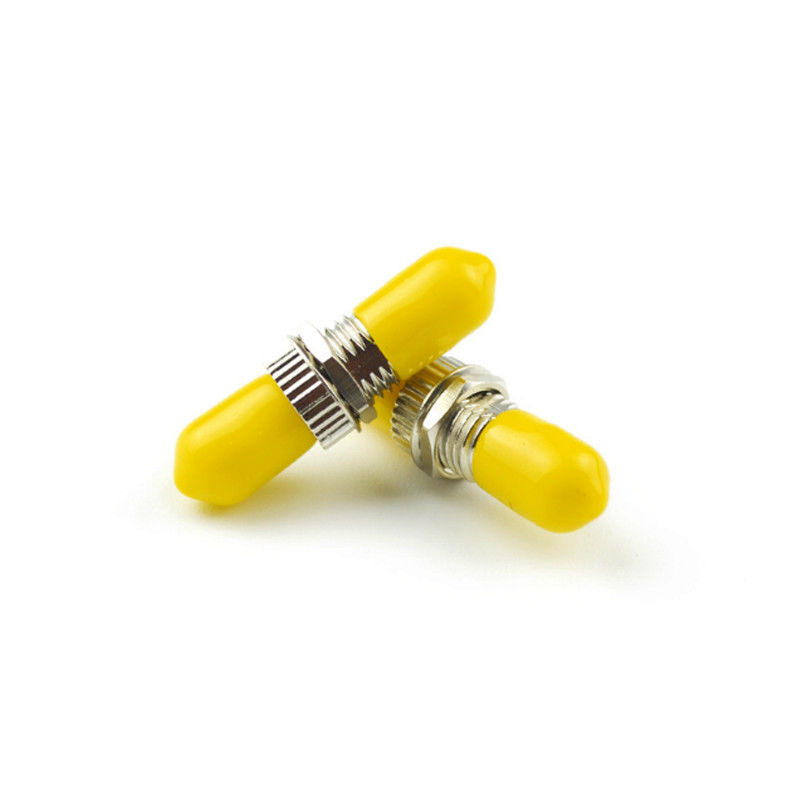

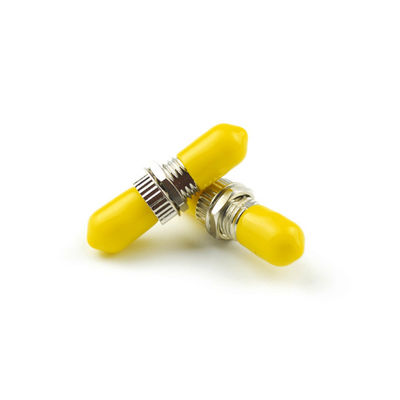

ST adapters have the low insertion loss and back reflection loss, and it gets the telcordia style boots and RoHS compliant. The ST adapters can fits in the high speed transmission systems and fiber optic sensing.
Features
• Low insertion loss and back reflection loss
• Ferrule end surface pre-domed
• Precision anti-rotation key and corrosion resistant body
• UL-rated plastic housing
• Telcordia style boots
• Free-floating ceramic ferrule
• Zirconia sleeves or Phosphor bronze sleeves
• D-shaped easily installs into panel mount
• RoHS compliant
Applications
• Fiber Optic Telecommunications
• LAN (Local Area Network)
• FTTH (Fiber To The Home)
• CATV&CCTV System
• High speed transmission systems
• Fiber optic sensing
• Industtial, Mechanical and Military
| Parameter | Unit | SC | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Return Loss | dB | ≥45 | ≥50 | ≥55 | ≥30 |
| Exchange ability | dB | ≤0.2 | |||
| Repeat ability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | ℃ | -40~75 | |||
| Storage Temperature | ℃ | -45~85 | |||
