| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | CONNFCUSMSX30 | Type: | SM-UPC |
|---|---|---|---|
| Ferrule Hole Sizes: | 125.2-126.2um | Return Loss: | ≥50dB |
| High Light: | upc 0.3dB fiber optic cable connectors,fiber optic cable connectors 0.15db APC,single mode fiber connectors 128um |
||

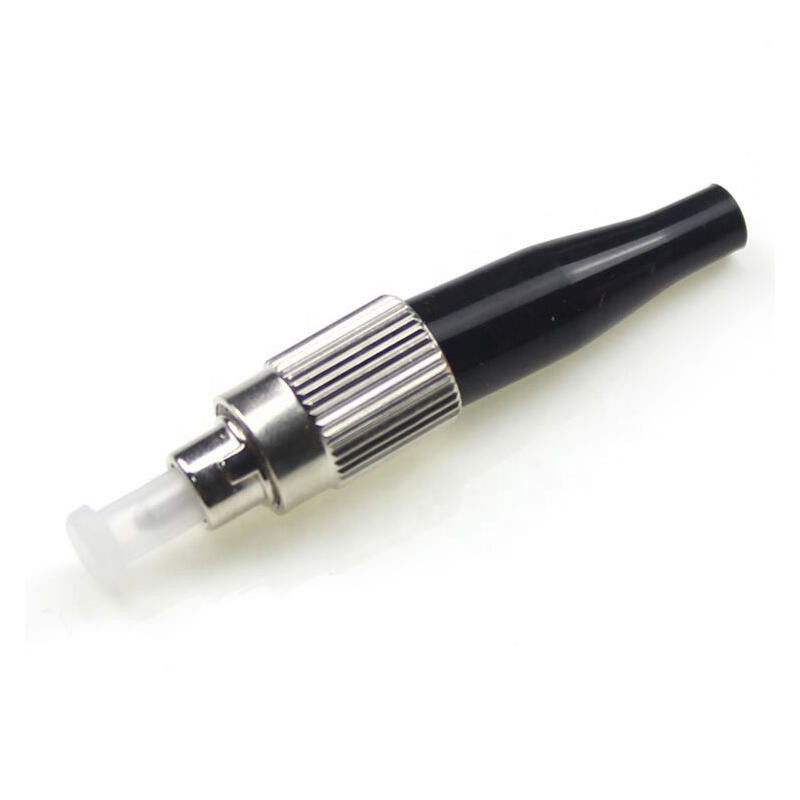

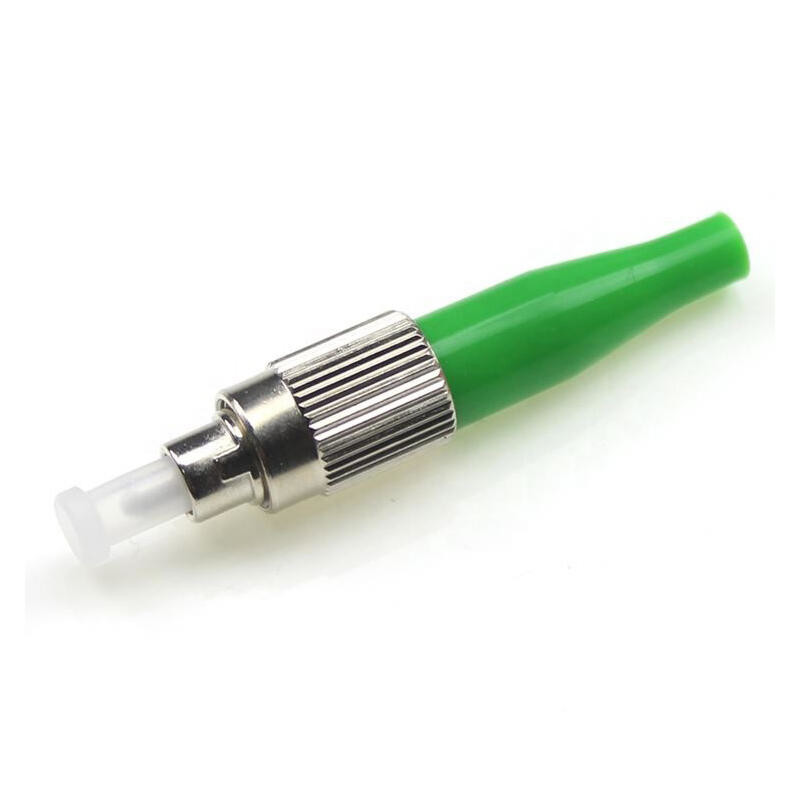

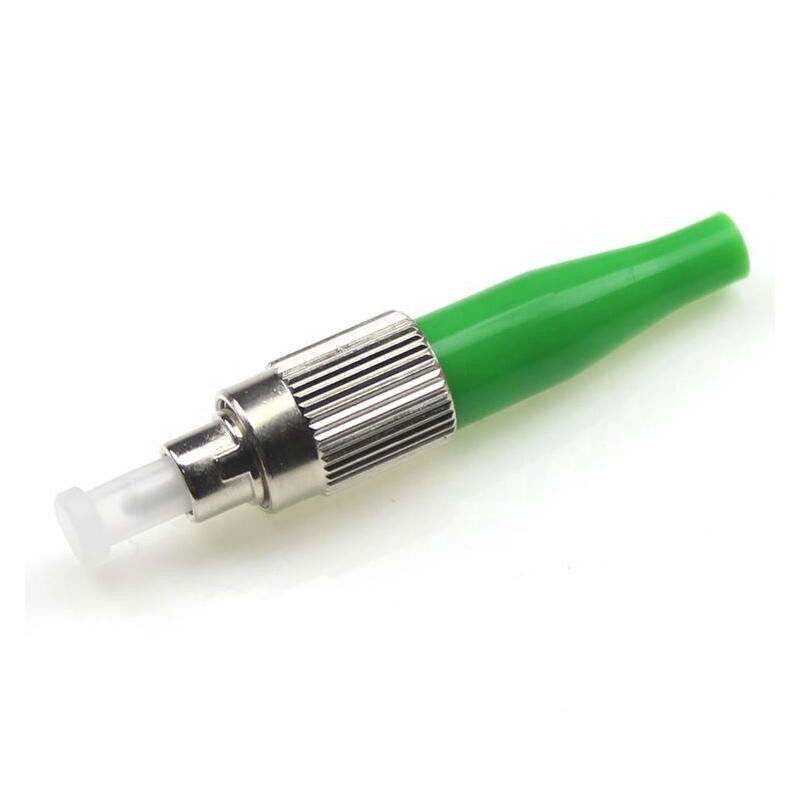

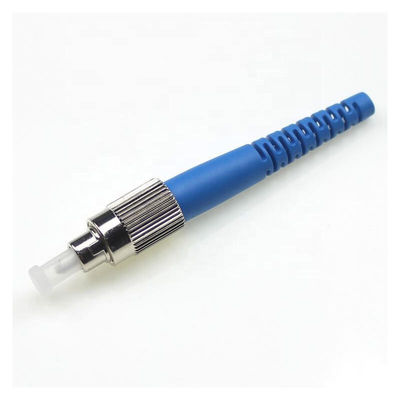

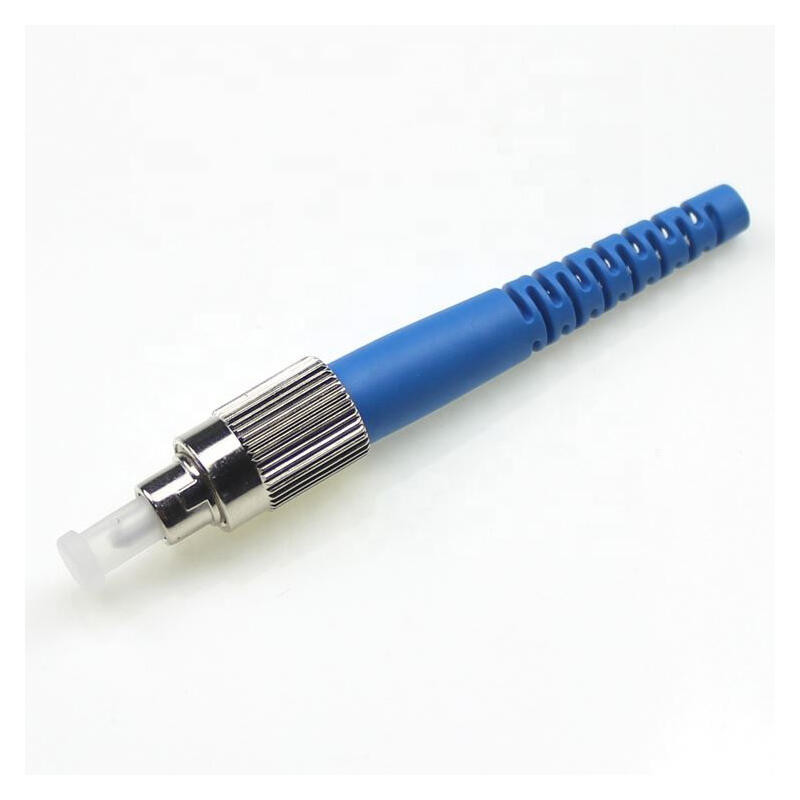

FC connector is precision made and manufactured to demanding specifications. It mechanically couples and aligns the fiber cores to make light pass successfully. Therefore, FC connector has high size precision and good repeatability and has an important impact on the fiber optic transmission reliability and the performance of the system. Quality optical connectors lose very little light due to reflection or misalignment of the fibers.
These connectors are suitable for 900µm, 2mm and 3mm cable. The connector is precision made and manufactured to demanding specifications. The combination of a ceramic ferrule with precision nickel plated brass housing provides consistent,long-term mechanical and optical performance.
High size precision.
Good repeatability.
Good changeability.
Good temperature stabilization.
High wearable.
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Ferrule hole sizes | 125.2-126.2um | 125-128um | ||||
| Durability | 500 mating cycles | |||||
| Working temperature | -40 to + 85℃ | |||||
