| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Skylynn |
| Certification: | ISO9001/CE/RoHS |
| Model Number: | GYTA33 |
| Minimum Order Quantity: | 2000 meters |
| Price: | $0.35 - $3.50/meters |
| Packaging Details: | 2 km per drum or as request |
| Supply Ability: | 2000000 Meter/Meters per Month |
| Type: | Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
|---|---|---|---|
| Application: | Submarine | Color: | Black |
| Product Name: | GYTA33 Fiber Optic Cable | Jacket: | PE LSZH |
| Cable Type: | Armored | Fiber Type: | G652D/G657A1/G657A2/OM1/OM2/OM3/OM4 |
| Item: | Waterproof | Model: | GYTA33 |
| High Light: | GYTA33 Single Mode Fiber Optic Cable,GYTA33 Single Mode Optical Fiber,12 Core Single Mode Fiber Optic Cable |
||

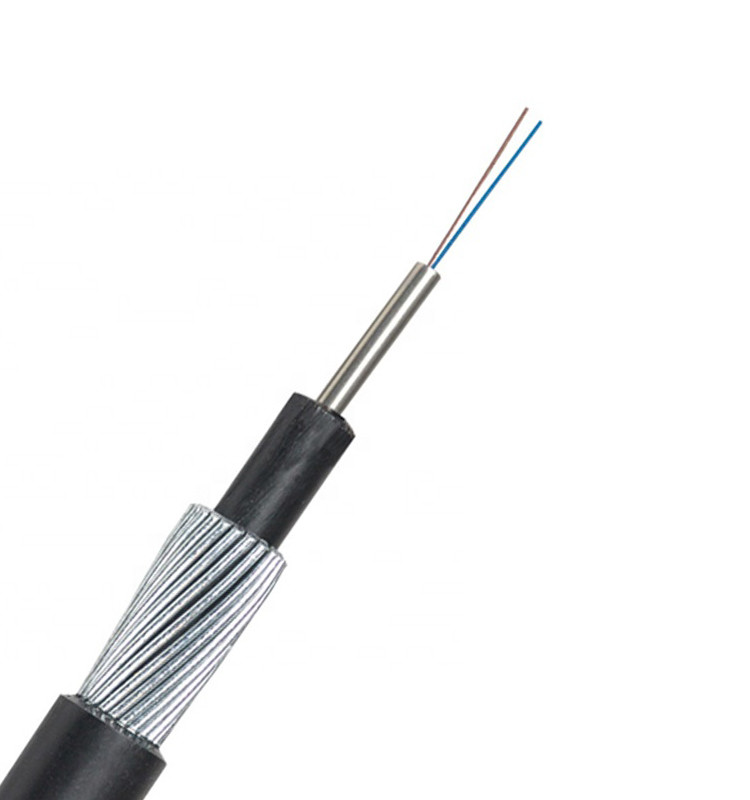

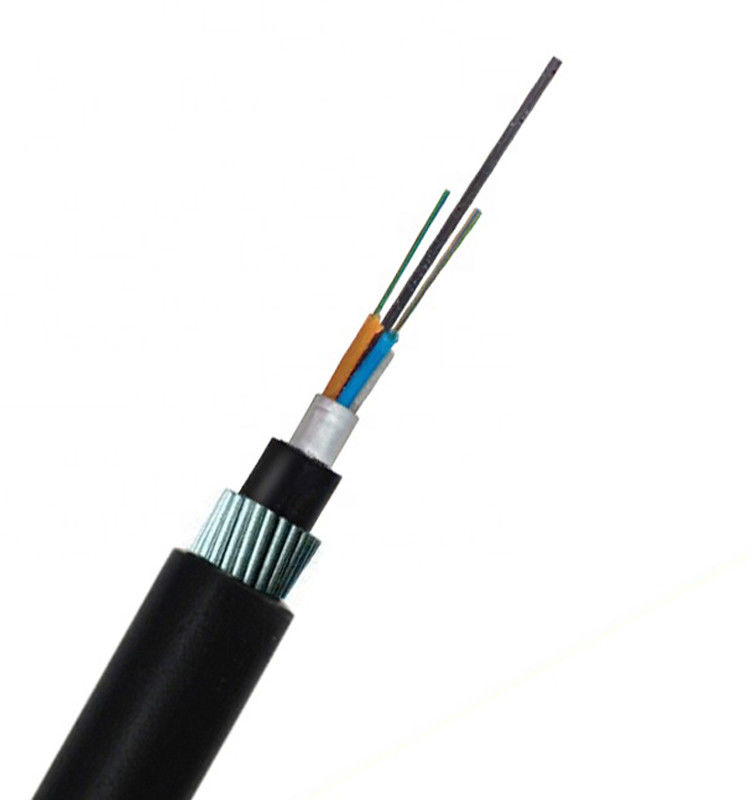

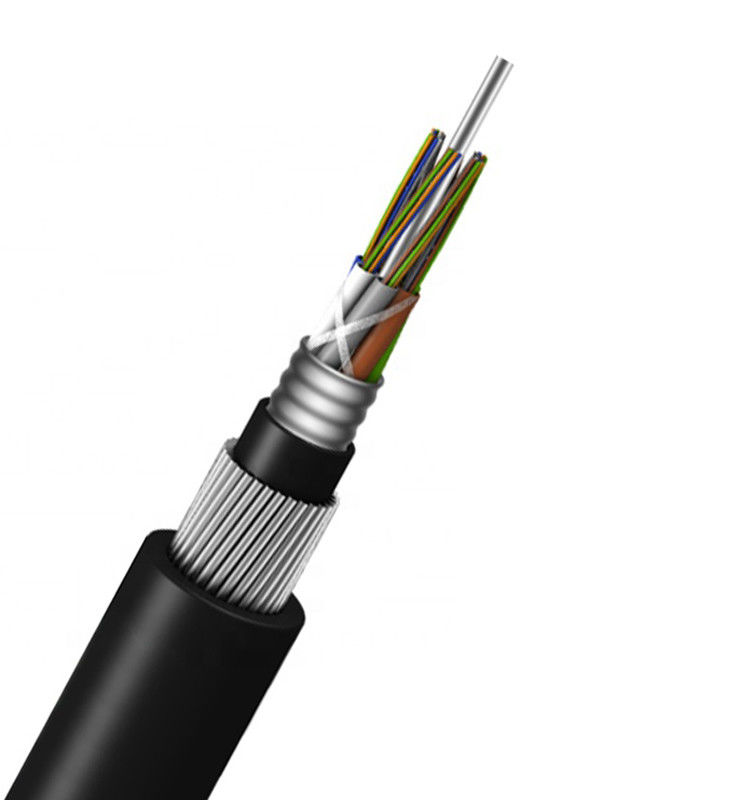

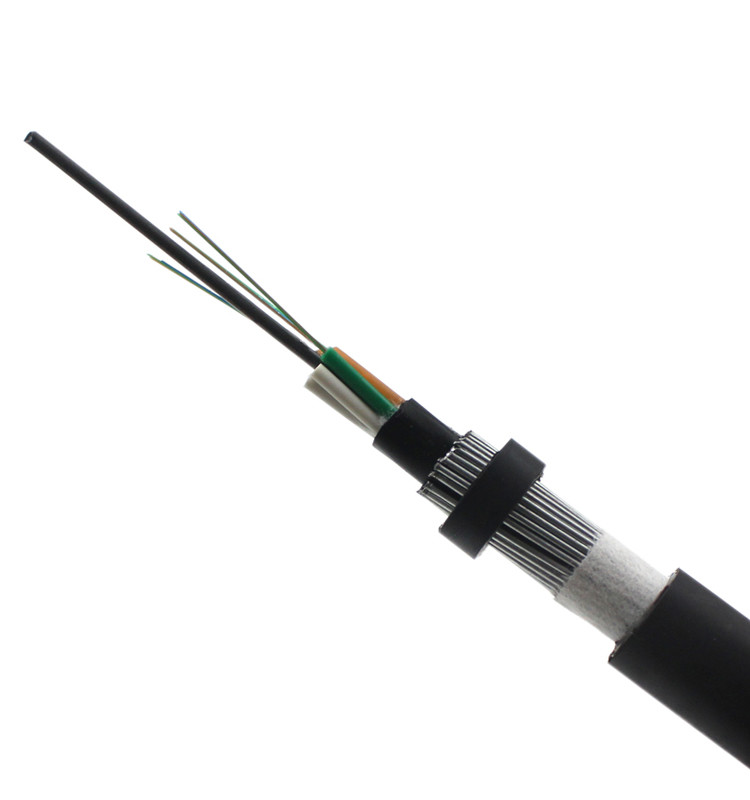

GYTA33 Fiberoptic Cable MOQ 2KM Submarine 12 Core Single Mode Fiber Optic Cable
Fiber optic cable GYTA33, 2~72 fibers, central strength member (steel), jelly filled, fiber contained loose tube and pp filler (if necessary) stranded, water blocking jelly, copolymer coated aluminum tape, pe inner sheath, armored by a layer of steel wires, pe outer sheath. G652d sm fiber, detailed specification on your request
Application:
1.Laying modes: direct buried & under-water.
2.Applications: Long-distance communication, local trunk line, catv & computer networks system.
| Fiber count | 2~30 | 32~36 | 38~60 | 62~72 | 2~36 | 38~72 | |
| CSM/Steel wire (mm) | --/1.5 | --/2.0 | --/1.8 | 2.4/1.8 | --/2.0 | 2.4/1.8 | |
| Element mumber | 5 | 6 | 5 | 6 | 6 | 6 | |
| Max. cores in tube | 6 | 6 | 12 | 12 | 6 | 12 | |
| Diameter of inner sheath | 8.3 | 8.8 | 9.1 | 9.7 | 10.5 | 10.5 | |
| Steel wire diameter and No. | Φ1.0/28 | Φ1.0/29 | Φ1.0/30 | Φ1.0/32 | Φ1.5/24 | Φ1.5/24 | |
| Cable diameter approx (mm) | 14.3 | 14.8 | 15.1 | 15.7 | 17.5 | 17.5 | |
| Weight approx (kg/km) | 315 | 328 | 340 | 360 | 520 | 520 | |
| Tensile strength (N) | Long term | 4000 | 10000 | ||||
| Short term | 10000 | 2000 | |||||
| Crush Resistence(N/100mm) | Long term | 3000 | |||||
| Short term | 5000 | ||||||
