| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Skylynn |
| Certification: | ISO9001 |
| Model Number: | ADSS |
| Minimum Order Quantity: | 2 kilometers |
| Price: | $150.00 - $1,650.00/kilometers |
| Packaging Details: | 2KM per Drum |
| Supply Ability: | 50 Kilometer/Kilometers per Day |
| Type: | Fiber Optic Cable | Fiber Count: | 2-144 Core |
|---|---|---|---|
| Color: | Black | Application: | FTTH FTTB FTTX Network |
| Fiber Type: | Single Mode, Multi Mode | Weight: | 115kg~470kg |
| Dimension: | 12mm~14.2mm | Range Temterature: | -40~+60℃ |
| Product Name: | Outdoor Cable | Multi-Mode Fiber: | OM1,OM2,OM3,OM4,OM5 |
| Single-Mode Fiber: | G652D | ||
| High Light: | Double Sheath ADSS Fiber Optic Cable,Single Sheath ADSS Fiber Optic Cable,Single Mode Adss Fiber Optic |
||

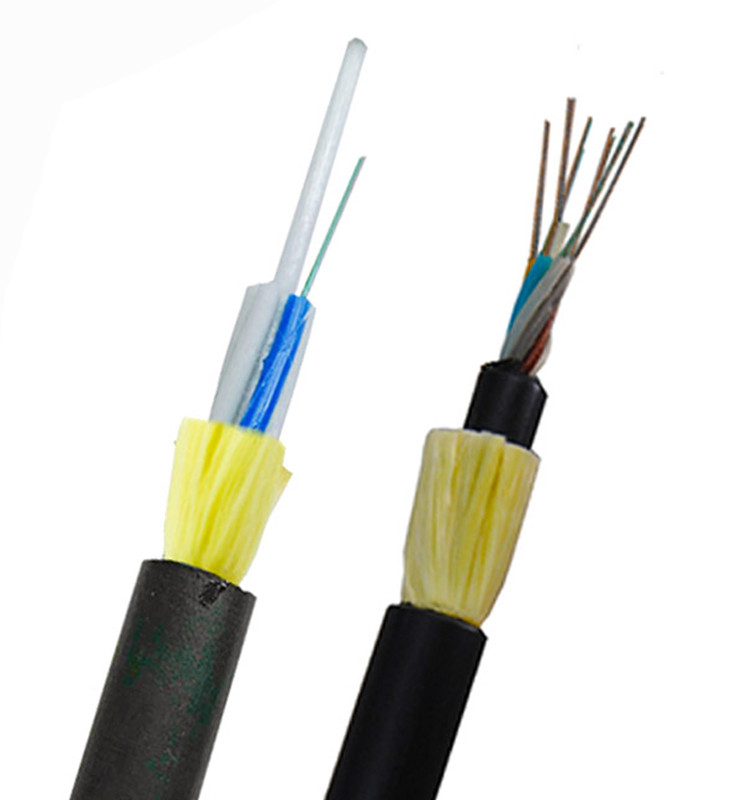

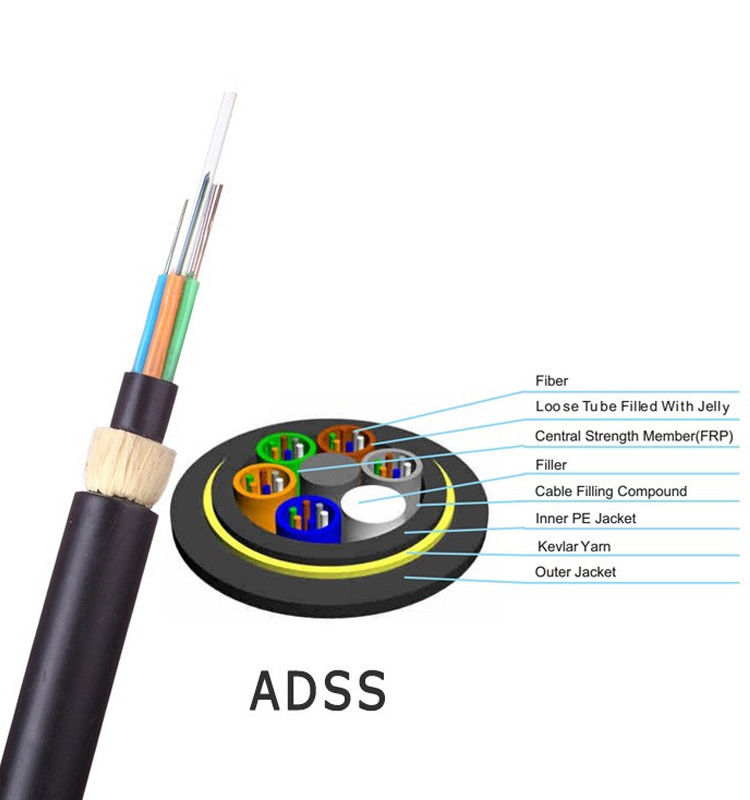

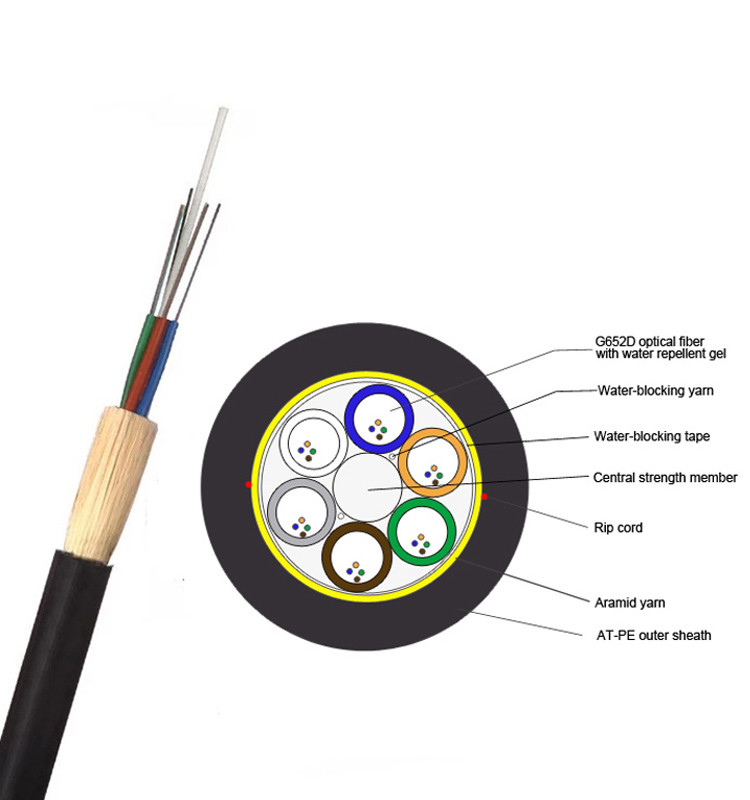

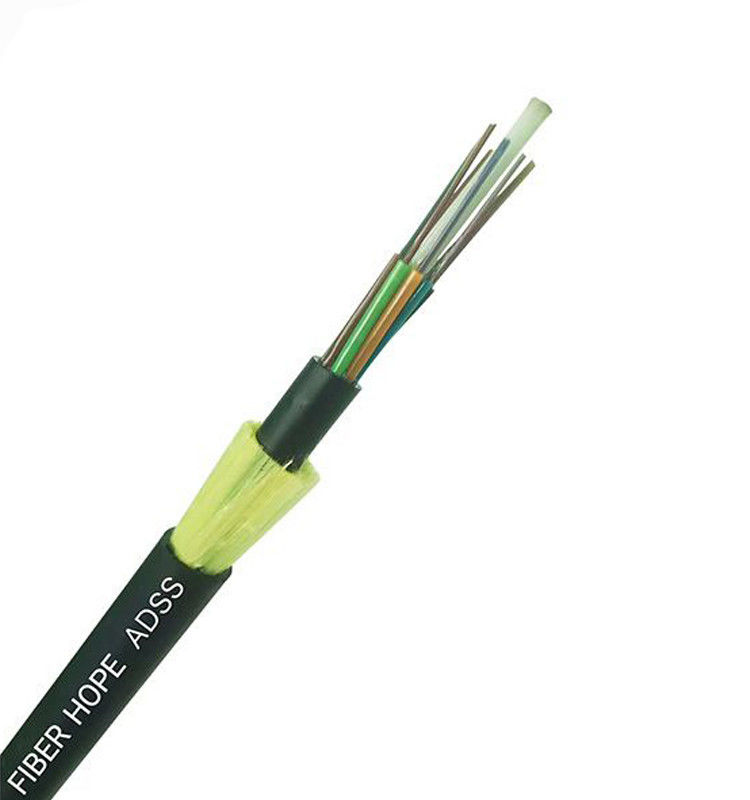

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (FiberReinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Features:
Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
Excellent mechanical performance
Good flexibility and bending performance
Small outer diameter, lightness and compact construction
Appicable fieds:
Long-distance teecom,LAN in high -votage area or access to telecom network
Installation: Sef-support aeria
Structure Characters:
Loose tube wifh mon-metalic strengthen member
High flexible amaid yarn
Can work at electrix field≤25KV/min a ling period
Temperature Characteristics:
Operate temperature range: -40o C to +60 o C
Storage temperature range: -40 o C to +60 o C
|
Max.allow working tension (KN) |
Break strength (KN) |
working tensile (KN) |
Diameter (mm) |
temperature (oC) |
| 2.5 | 6.25 | 1.56 | 12 | -40 ~ +60 |
| 3.5 | 8.75 | 2.19 | 12.2 | |
| 4.5 | 11.25 | 2.81 | 12.3 | |
| 6 | 15 | 3.75 | 12.5 | |
| 7 | 17.5 | 4.38 | 12.7 | |
| 8 | 20 | 5 | 12.8 | |
| 9 | 22.5 | 5.63 | 12.9 | |
| 10 | 25 | 6.25 | 13 | |
| 11 | 27.5 | 6.88 | 13.1 | |
| 12 | 30 | 7.5 | 13.2 | |
| 14 | 35 | 8.75 | 13.5 | |
| 16 | 40 | 10 | 13.7 | |
| 18 | 45 | 11.25 | 14 | |
| 20 | 50 | 12.5 | 14.2 |
Shenzhen Skylynn Communication Ltd. have CE, RoHS and ISO9001 certificate. Now, we are going to do the Antel certificate.
