| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | 104C | Delivery: | FOB |
|---|---|---|---|
| Splitter: | 1*2 | Adapter Capacity: | 2xSC |
| Highlight: | 1x2 Optical Splitter Box,2XSC Optical Splitter Box,ftth fiber optic termination box FTTO |
||

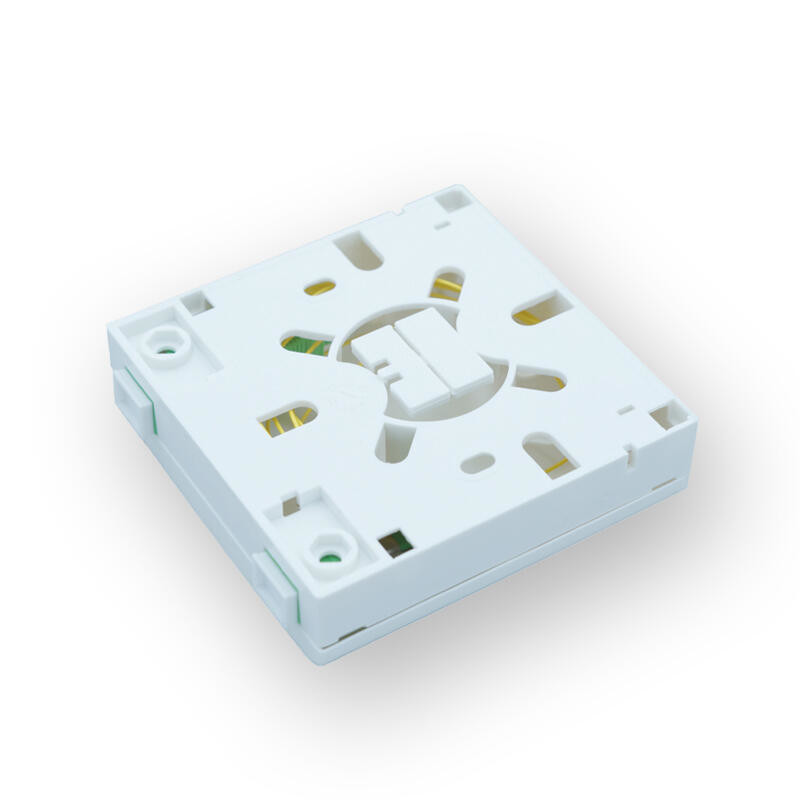

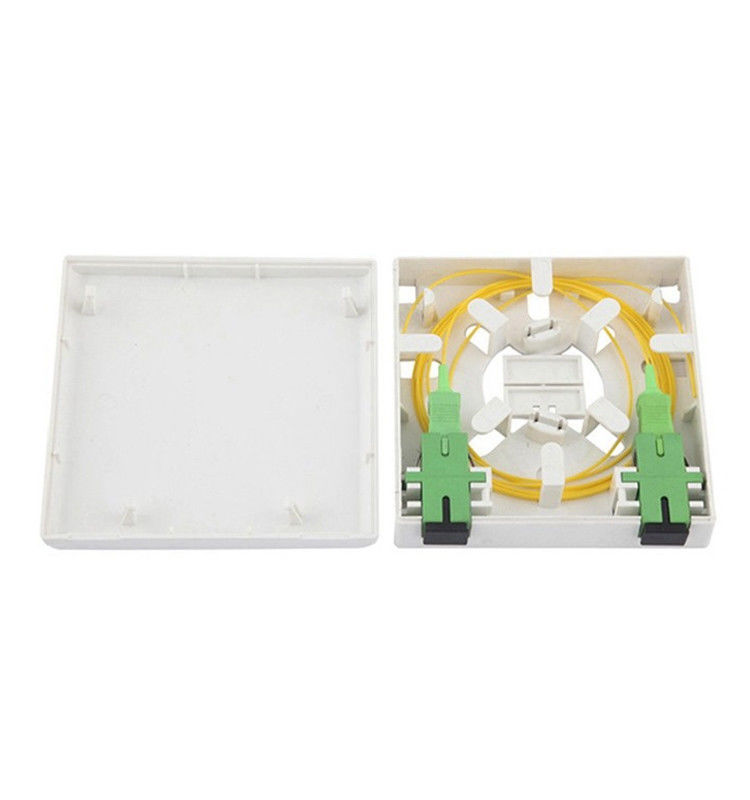

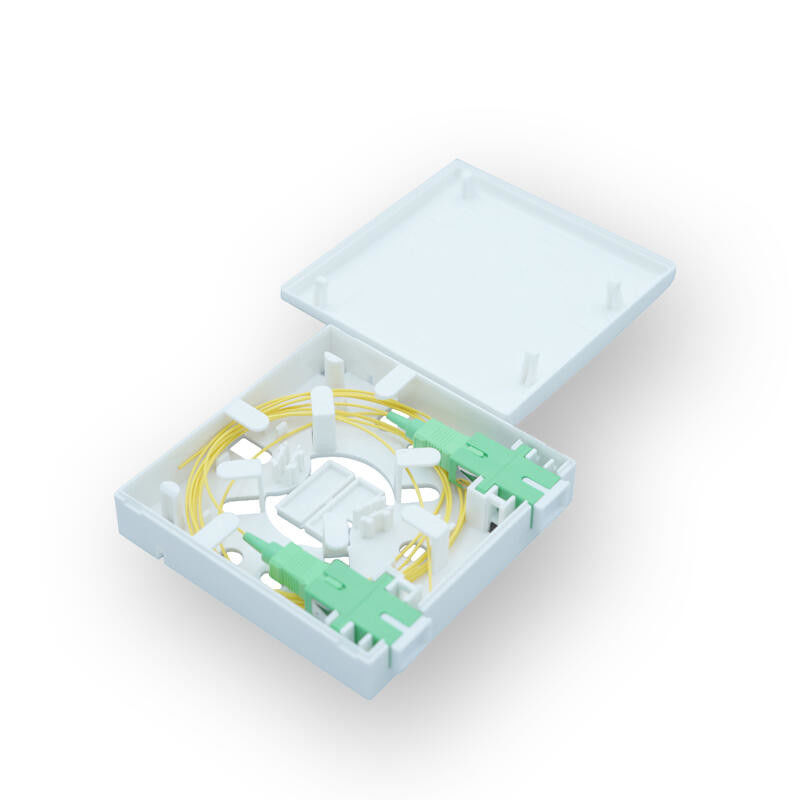

The indoor 86 mm type FTTH mini fiber optic face plate employs a compact plug-in design,combines a modern design concept, adopts imported plastic, is of a graceful appearance and applicable for FTTH, FTTO, etc., and allows easy use in different installation environments.
The clasp design of the cover has greatly reduced the installation strength. It is very thin and matches with other A 86 panels in homes, and also meet the open or concealed cabling for optical cables. Coordinating with FC strip-type optical adapter, it generates more options in term of fiber interfaces for users, all SC,LC and SC/FC are usable. In addition , the big diameter wrapping post in the box protects radically in an boomeranging way the optical fiber in the box.
Water-proof design with IP-66 Protection level.
Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice.
1*2 Splitter can be installed as an option.
Efficient cable management.
ports cable entrance for drop cable
CATV
Telecom,opic fiber communications system
|
dimensions(W*H*D) |
86mm*86mm*23mm |
|
Adapter Capacity |
2xSC |
|
Number of Cable Entrance/Exit |
1/2 |
|
Optional Accessories |
Adapters, pigtails |
|
Insert Loss |
≤0.2dB |
|
UPC Return Loss |
≥50dB |
|
APC Return Loss |
≥60dB |
|
Weight |
0.8KG |
|
Max diameter entry cable |
15mm |
