| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | FDB-0216R | Delivery: | EXW/FOB/CIF Etc. |
|---|---|---|---|
| Country Of Origin: | GUA, CN | Splice Capacity: | 120F |
| High Light: | 120F Fiber Optic Splitter Box,FTTX Fiber Optic Splitter Box,outdoor distribution cabinet 16 core |
||

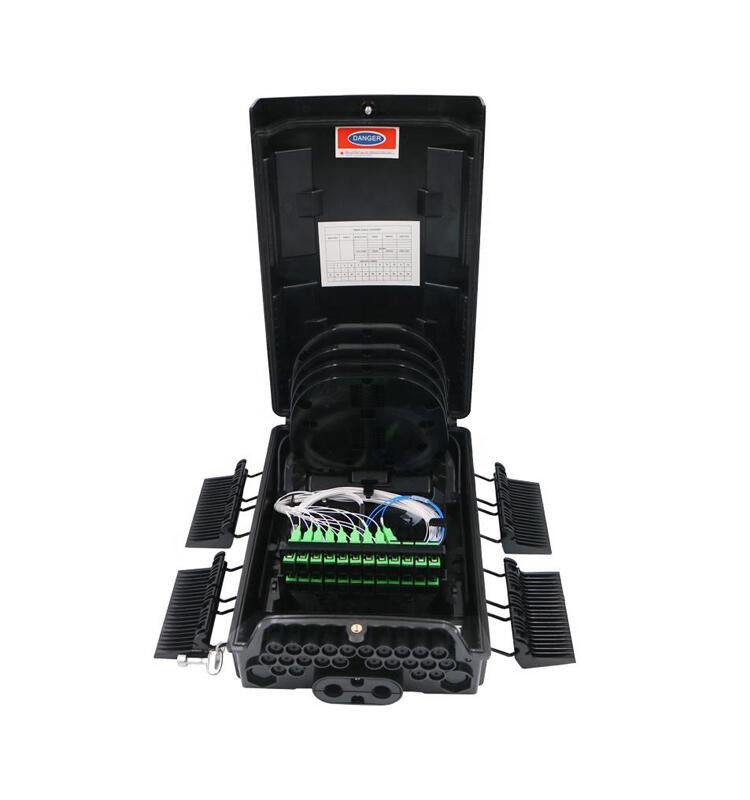

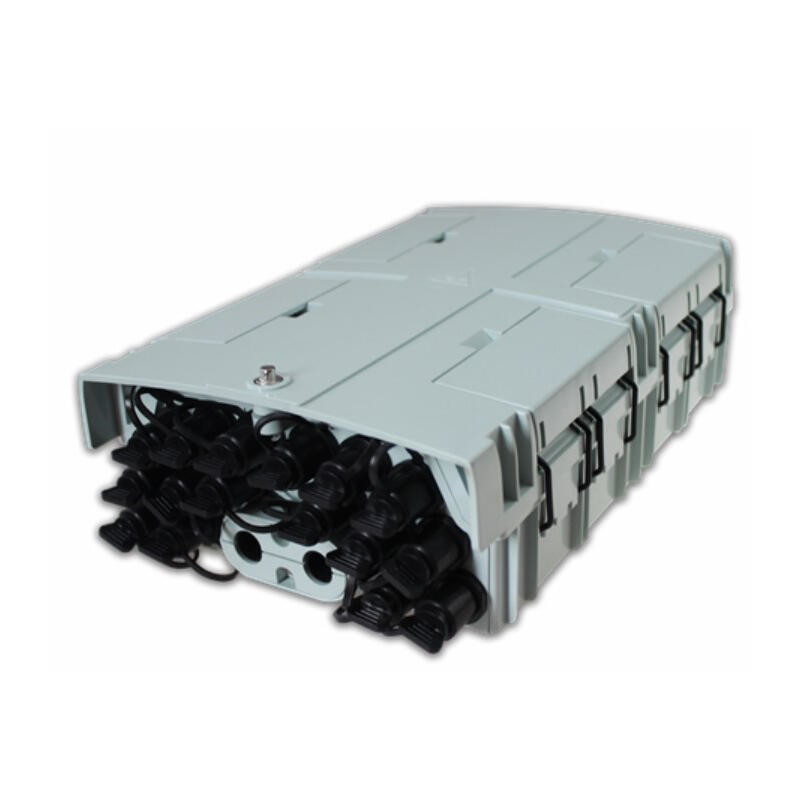

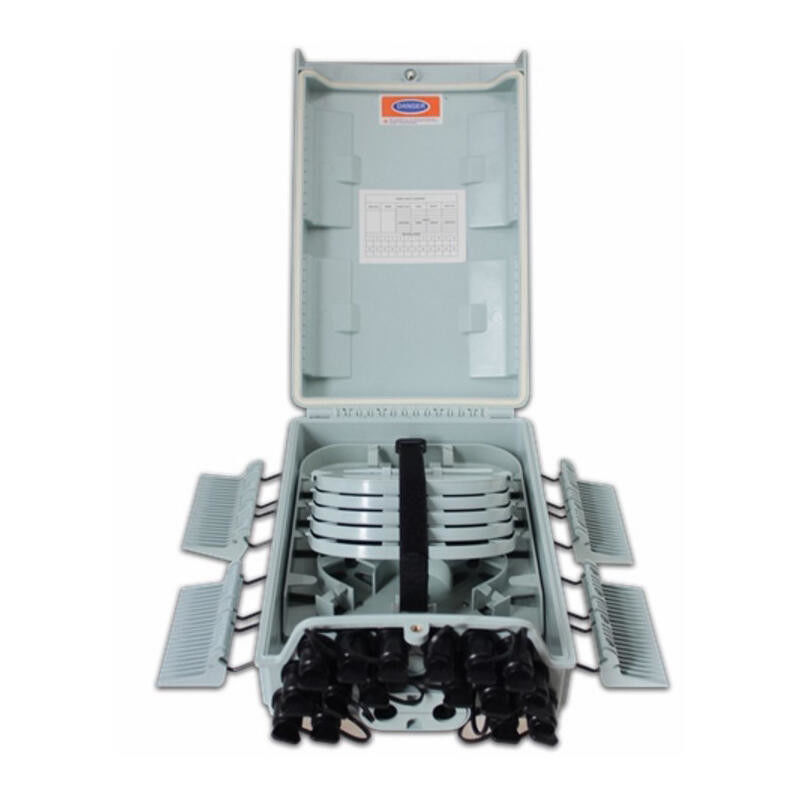

FDB-0216R fiber waterproof drop cable distribution box is able to hold up to 16 subscribers and 120 splicing point. It is used as a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
● Water-proof design with IP-65 Protection level.
● Integrated with flap-up splice cassette and adapter holder.
● Maximum 120F splice capacity,stainless anti-rust bolts and nuts.
● Easy for maintainance and expansion.
● Fiber bend radius control more than 40mm.
● 180 degree access with buckled lock structure.
● 2pcs of 1*8 PLC splitter can be installed
● 16pcs of pre-installed reinforced water-proof adapter for SC.
● 1 mid-span cable entrance(10-16.5mm) for uncut cable.
| Material | Size(mm) | Max Capacity | Nos of adapter | Weight | Color | |
| PC+ABS | 340x220x95 | Splice 120 fibers | PLC splitter | 16pcs SC/UPC | 1.85kg | Grey/Black |
| 5 x24f/tray | 2 pcs of 1x8 | |||||
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, cable tube, key, wrench, rubber seal for cable entrance.
Pole mounted kits.
