| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | FTB-104C | Delivery: | FOB |
|---|---|---|---|
| Highlight: | outdoor fiber distribution cabinet 4Port FTTH,outdoor fiber distribution cabinet 1X4,fiber optic termination box IP65 |
||
Description

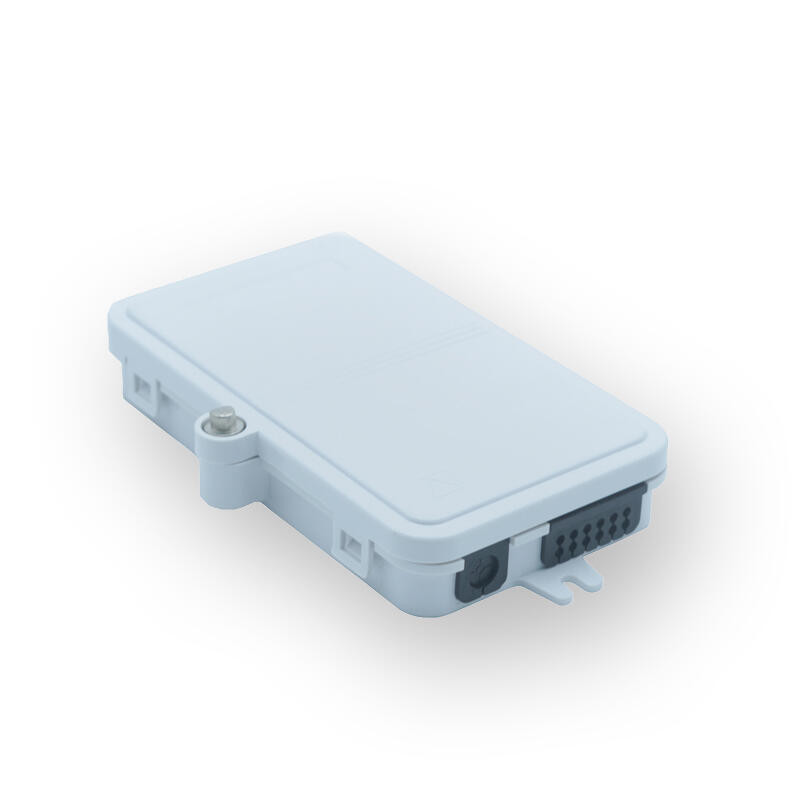

FDB-104C/106C terminal box is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH. Widely used in the end termination of residential buildings and villas, to storage and splice fibers and protect the fiber fusing; Can be installed on the wall and pole; May adapt variety of optical connection styles; Optical fiber can be managed effectively. Available for 1*2/1*4 PLC Splitter.
FTTH,LAN network and CATV system application.
Available for 1*2/1*4 PLC Splitter. Design to protect PLC splitter.
Suit for both Outdoor & Indoor. IP65 Grade.
Waterproof, Anti-UV(UL-94V0), Ultra violet resistant and rainfall resistant.
Light weight, small cubage, small installation size,realizable sealing.
Could be connected FTTH Drop cables inside. Design the splicing place for MechanicalSplice

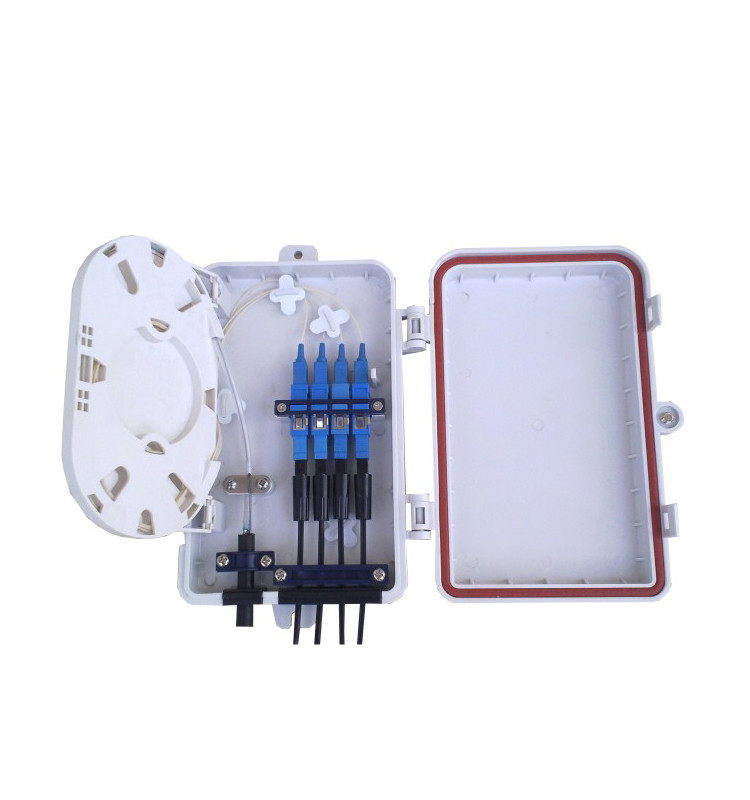

The base and cover of the box adopts “self-clip”&”screw-clip”two times lock method, which is better to use in outdoor for high sealing and waterproof.

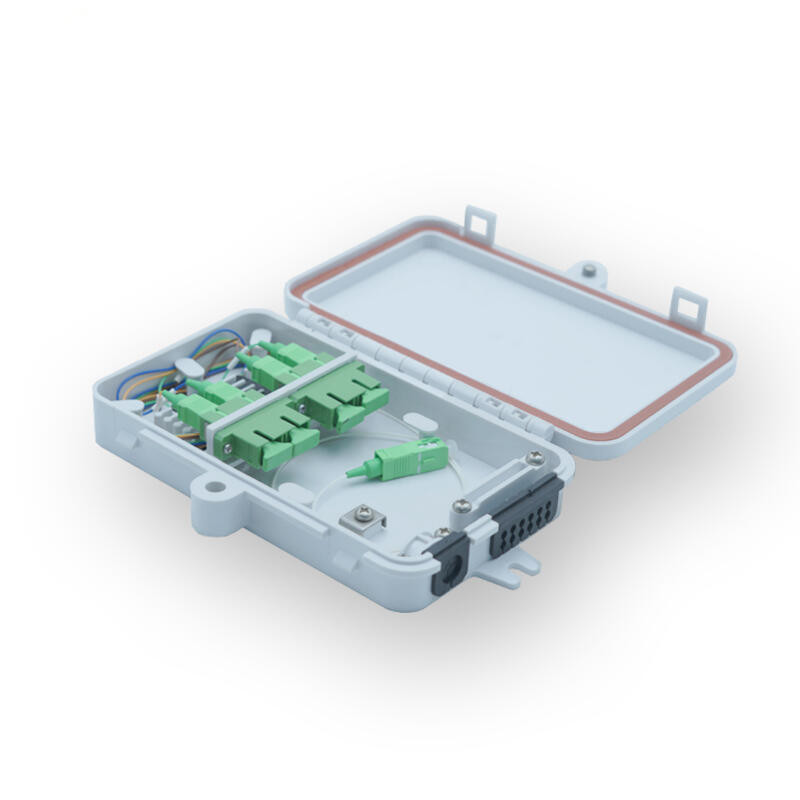

Could be used for LC Duplex,SC,ST,FCAdapter;
Could be connected 1 inlet ports, 4 outlet ports.
Max fiber sleeve:8pcs (2pcs per slot. total 4slots)
Fiber sleeve type: 40*3.0mm/ 60*3.0mm
WALL MOUNTING POLE MOUNTING
2.1 Environmental Temperature:-40℃~60℃;
2.2 Max capacity: 6fibers;
2.3Application for outdoor, IP65 grade
2.4 Material: High impact plastic.
|
Model |
Capacity |
Size(mm) |
Weight (kg) |
|
FTB-104C/106C |
4ports |
210(W)X140(H)x40(D) |
0.45 |
