| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 10PCS |
| Packaging Details: | PP BAG, INNER BOX, OUTER BOX |
| Delivery Time: | 2-7 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 800,000 |
| Model NO.: | FTB-16B | Delivery: | EXW/FOB/CIF Etc. |
|---|---|---|---|
| Country Of Origin: | GUA, CN | ||
| Highlight: | 16F Fiber Optic Splitter Box,IP66 Fiber Optic Splitter Box FTTH,1X16 outdoor fiber distribution cabinet |
||

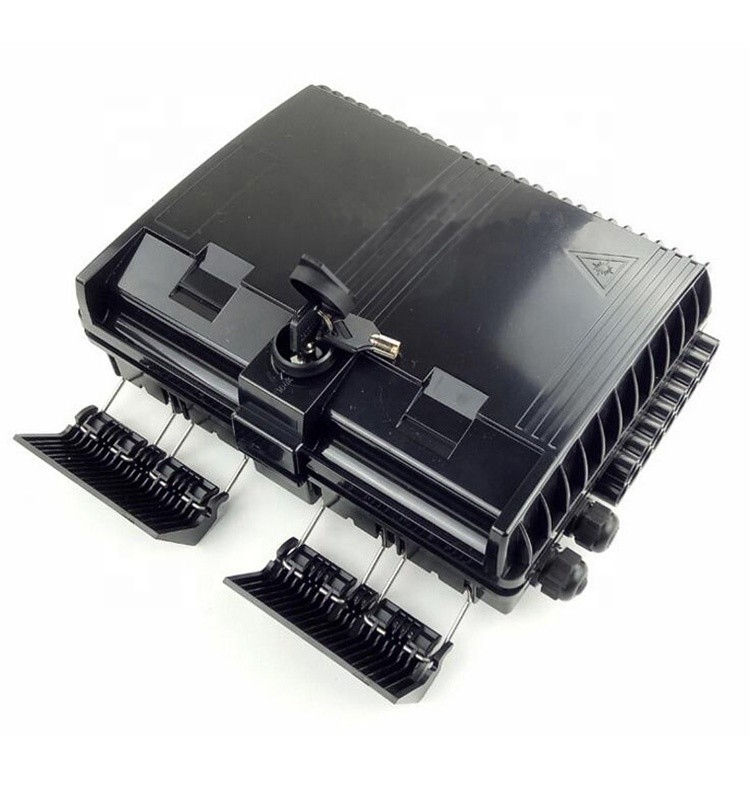

Water-proof design with IP-66 Protection level.

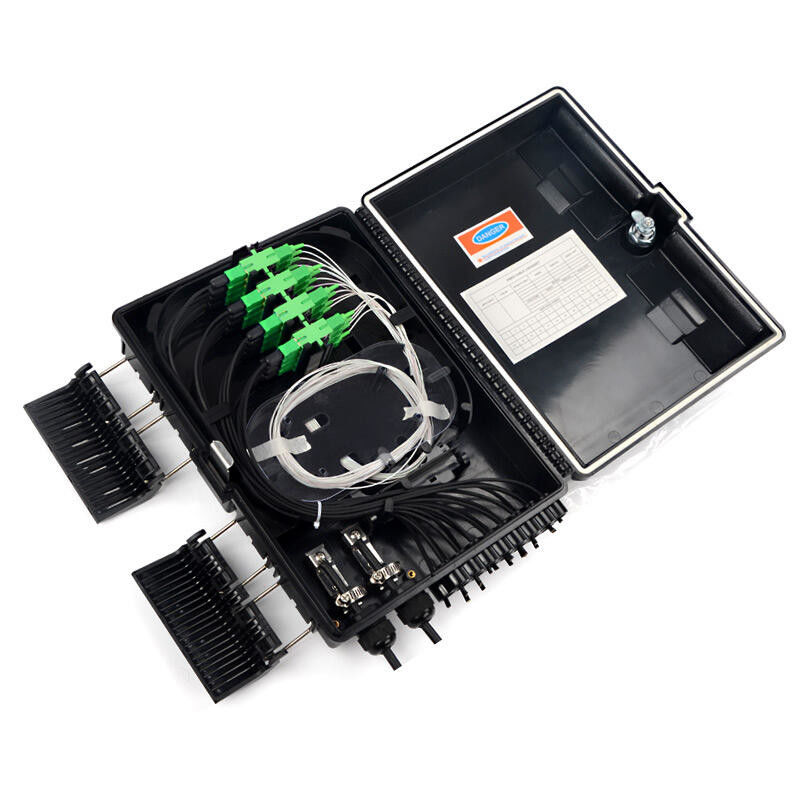

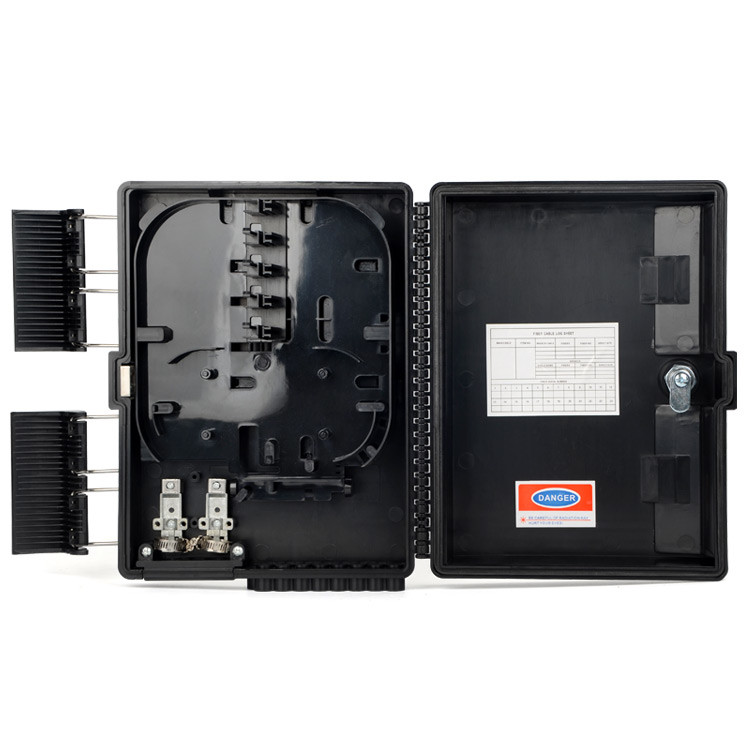

Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice.
1*16 Splitter can be installed as an option.
Efficient cable management.
16 ports cable entrance for drop cable.
|
Material |
Size |
Max Capacity |
Installation size |
Weight |
Color |
|
|
PC+ABS |
265*130*40mm |
SC 16 Ports |
PLC 1x16(SC) |
D*E(mm) 145*82 |
1.5KG |
White/Black |
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves,hose clamp, rubber steal for cable entrance.
Pole ring, Extra lock and key
