| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 2KM |
| Packaging Details: | WOODEN DRUM |
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 100,000 cores |
| Model NO.: | GYFXTY | Delivery: | EXW/FOB/CIF Etc. |
|---|---|---|---|
| Country Of Origin: | GUA,CN | ||
| High Light: | FRP optical fiber duct cable,optical fiber duct cable 24F,2f fiber optic cable 8mm |
||

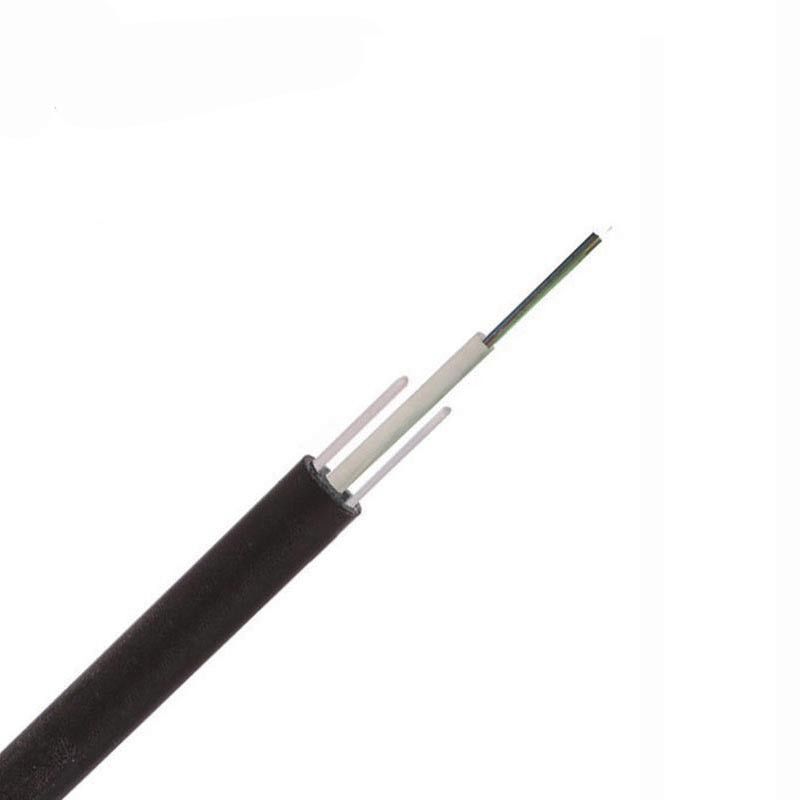

Outdoor Central Loose Tube No-metal Duct Cable GYFXTY
Description

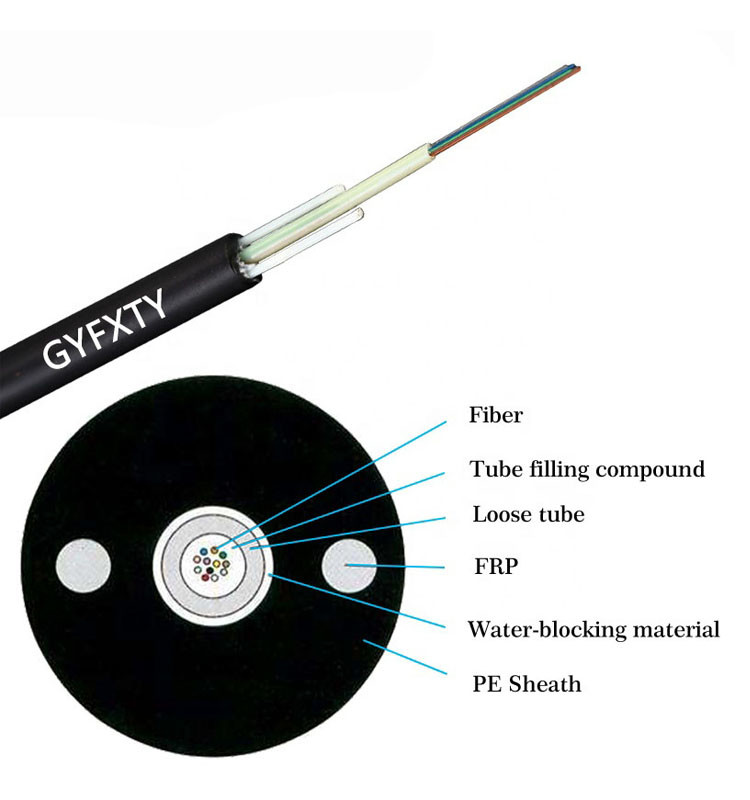

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube. water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene(PE) sheath.
-Adopted to indoor and outdoor distribution.
-Suitable for communication equipment serve.
Characteristics
-Good mechanical and temperature performance.
· High strength loose tube that is hydrolysis resistant.
· Special tube filling compound ensure a critical protection of fiber.
· FRP ensure tensile strength.
· Small diameter, light weight and friendly installation.
Technical Data
| Fiber count | Cable outer dia(mm) | Cable weight(kg/km) | Min.bending radius(mm) | Permissible tensile force(N) | Permissible pressure force(N/100mm) | |||
| Static | Dynamic | Short-term | Long-term | Short-term | Long-term | |||
| 2--12 | 8 | 70 | 10D | 20D | 1500 | 600 | 1000 | 600 |
| 14--24 | 8.7 | 81 | 10D | 20D | 1500 | 600 | 1000 | 600 |
