| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 2KM |
| Packaging Details: | WOODEN DRUM |
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 100,000 cores |
| Model NO.: | GYFTY53 | ||
|---|---|---|---|
| High Light: | 36F GYFTY53 fibre optic cable underground,36F fibre optic cable underground 30F,armored fiber optic cable 36F |
||
Description

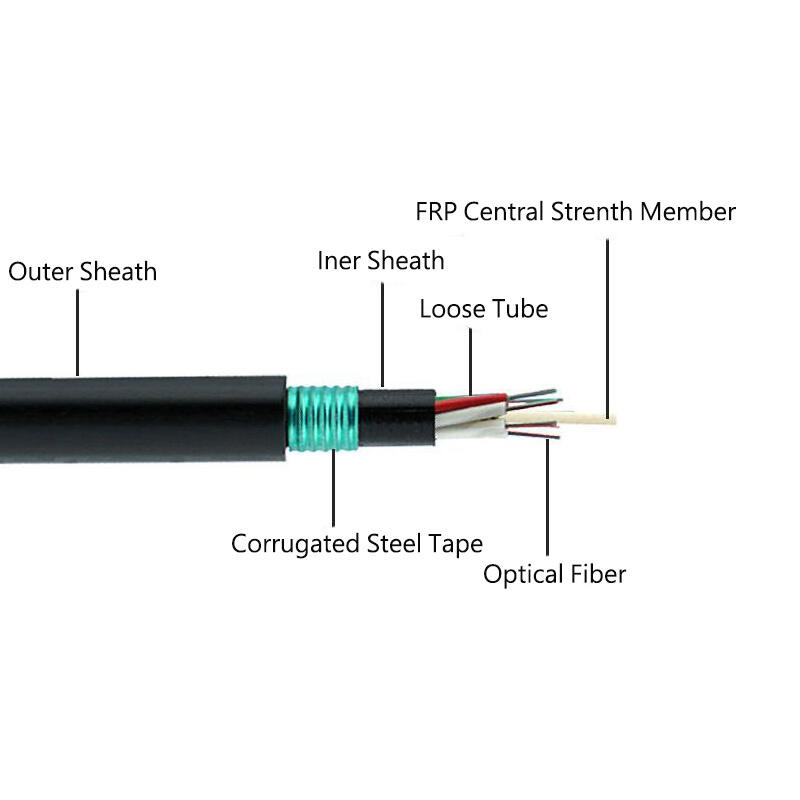

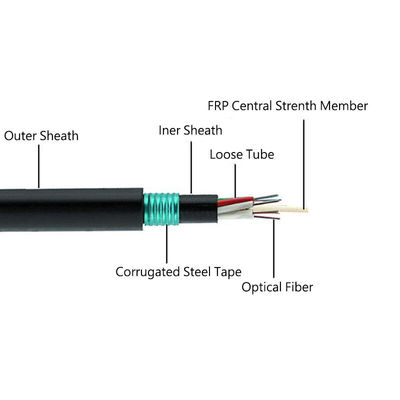

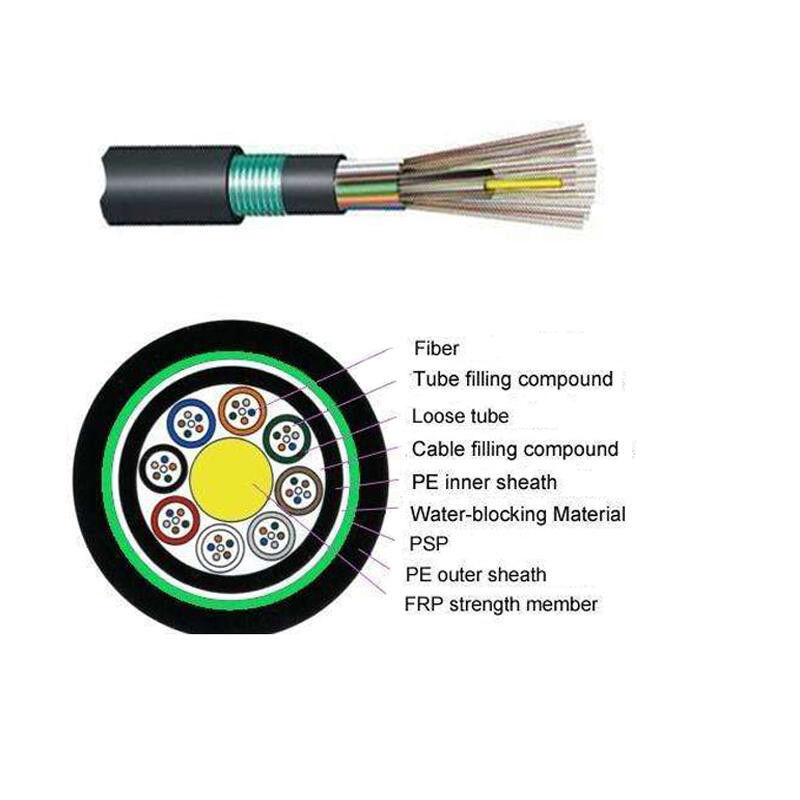

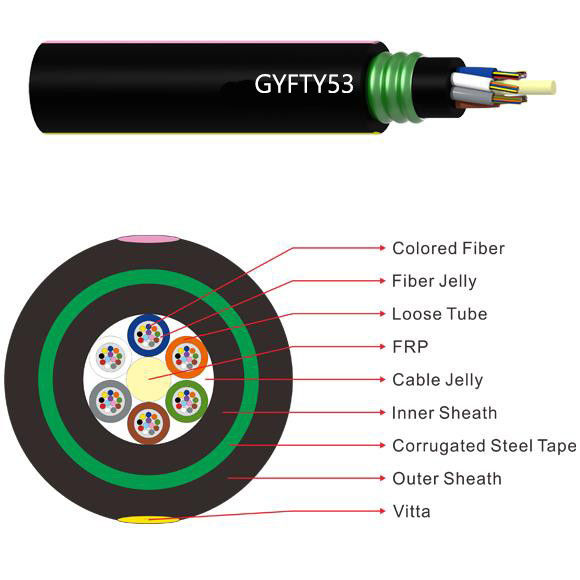

The loose tube cable have good mechanical and temperature performance. We adapt stranded loose tube to improve the tensile strength. Metal strength member which we use can provide excellent strain performance. Double-jacket structure can enusre moisture resistance and crush resistance.The loose tube cable is used for duct and buried laying method.
Features
• Good mechanical and temperature performance
• Stranded loose tube improves the tensile strength
• Metal strength member provides excellent strain performance
• Double-jacket structure enusres moisture resistance and crush resistance
• Steel tape and aluminum tape enhances water-blocking & moisture-proof performancePE or AT sheath ensures safety of cable in high voltage environment
Application
• Used for duct and buried laying method
• Adopted to outdoor distribution
• Specially used where good mechanical performance and rodent resistance are expected
Optical Characteristic
| G.652 | G.655 | 50/125μm | 62.5/125μm | |||
| Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |||
| (+20℃) | @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | ||||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | ||||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | ||||
Technical Parameters
| Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter mm | Cable Weight Kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100m | Bending Radius Static/Dynamic mm |
| GYFTY53-2~6 | 2~6 | 1 | 5 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-8~12 | 8~12 | 2 | 4 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-14~18 | 14~18 | 3 | 3 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-20~24 | 20~24 | 4 | 2 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-26~30 | 26~30 | 5 | 1 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-32~36 | 32~36 | 6 | 0 | 14.5 | 209 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-38~48 | 38~48 | 4 | 1 | 15.4 | 234 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-50~60 | 50~60 | 5 | 0 | 15.4 | 234 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-62~72 | 62~72 | 6 | 0 | 15.9 | 244 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-74~84 | 74~84 | 7 | 1 | 18 | 297 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-86~96 | 86~96 | 8 | 0 | 18 | 297 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-98~108 | 98~108 | 9 | 1 | 19.4 | 338 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-110~120 | 110~120 | 10 | 0 | 19.4 | 338 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-122~132 | 122~132 | 11 | 1 | 21.3 | 392 | 1000/3000 | 1000/3000 | 10D/20D |
| GYFTY53-134~144 | 134~144 | 12 | 0 | 21.3 | 392 | 1000/3000 | 1000/3000 | 10D/20D |
