| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 2KM |
| Packaging Details: | WOODEN DRUM |
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 100,000 cores |
| Model NO.: | GYFTA | Delivery: | EXW/FOB/CIF |
|---|---|---|---|
| Minimum Order Quantity: | 2 Kilometers | Country Of Origin: | GUA, CN |
| High Light: | 1550nm single mode fiber optic cable GYFTA,G652 single mode fiber optic cable,optical fibre underground cable 1550nm |
||

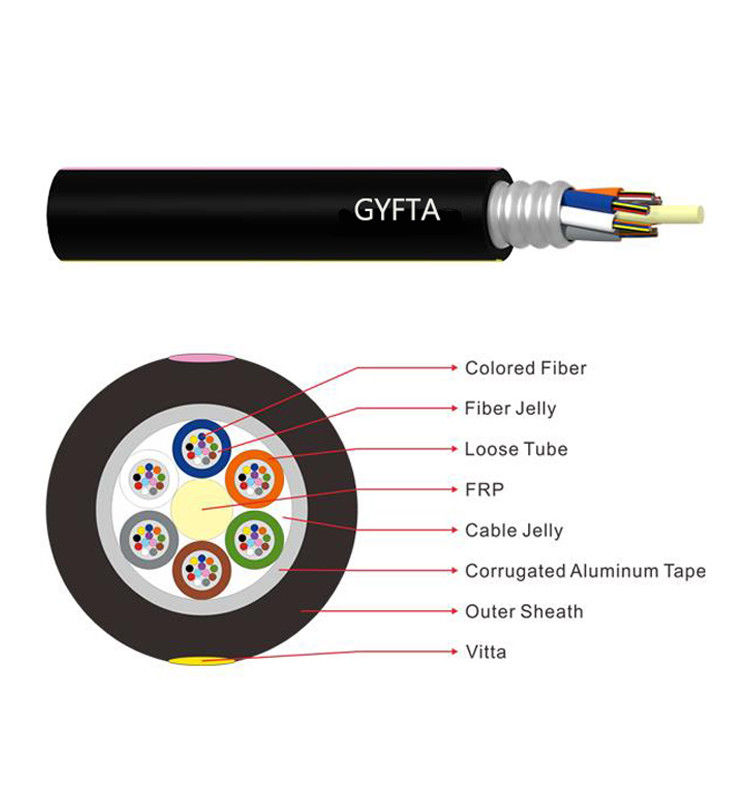

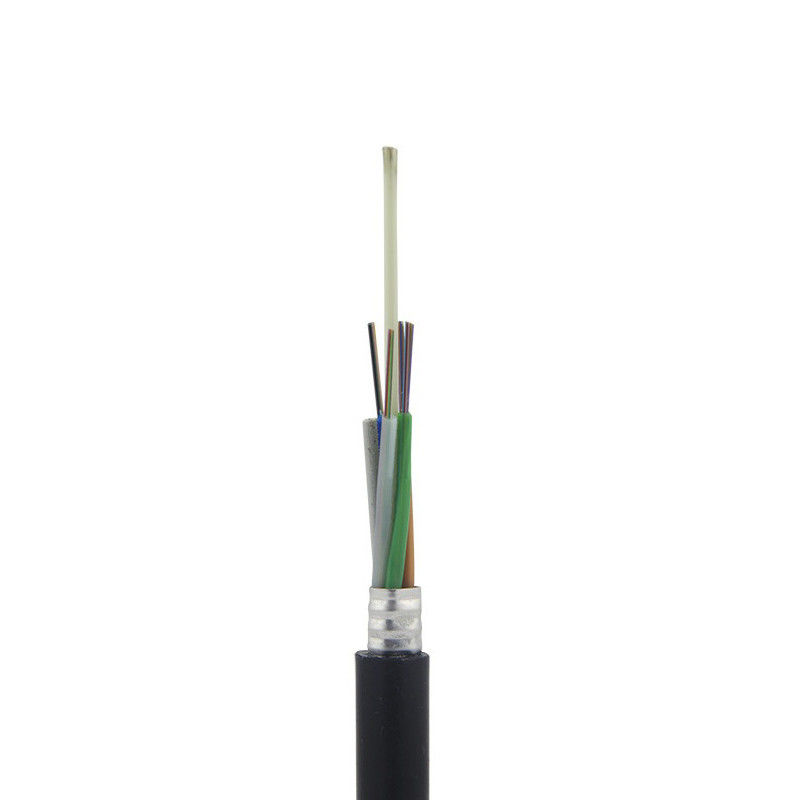

Outdoor Stranded Loose Tube Duct Un-armored Fiber Optic Cable GYFTA
Description
The unarmored cable has high water resistance ,high crush resistance, good flexibility and bending performance. You can choose fibre Type, sheath material and colour code of unarmored cable. The unarmored cable is mainly applicated in aerial and duct.
Features
Appicable
Aerial, Duct
Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | |||
| Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |||
| (+20℃) | @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | ||||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | ||||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | ||||
Technical Parameters
| Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static /Dynamic mm |
| GYFTA-2~6 | 2~6 | 1 | 4 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
| GYFTA-8~12 | 8~12 | 2 | 3 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
| GYFTA-14~18 | 14~18 | 3 | 2 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
| GYFTA-20~24 | 20~24 | 4 | 1 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
| GYFTA-26~30 | 26~30 | 5 | 0 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
| GYFTA-32~36 | 32~36 | 6 | 0 | 10.2 | 104 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTA-38~48 | 38~48 | 4 | 1 | 11 | 117 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTA-50~60 | 50~60 | 5 | 0 | 11 | 117 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTA-62~72 | 62~72 | 6 | 0 | 11.5 | 126 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTA-74~84 | 74~84 | 7 | 1 | 13.4 | 154 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTA-86~96 | 86~96 | 8 | 0 | 13.4 | 154 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTA-98~108 | 98~108 | 9 | 1 | 14.8 | 185 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTA-110~120 | 110~120 | 10 | 0 | 14.8 | 185 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTA-122~132 | 122~132 | 11 | 1 | 16.9 | 228 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTA-134~144 | 134~144 | 12 | 0 | 16.9 | 228 | 1000/3000 | 300/1000 | 10D/20D |
