| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 2KM |
| Packaging Details: | WOODEN DRUM |
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 100,000 cores |
| Model NO.: | GYFTY | Delivery: | FOB |
|---|---|---|---|
| High Light: | Outdoor Optical Fiber Cable 62.5um,Outdoor Optical Fiber Cable GYFTY,figure 8 fiber optic cable 0.40dB/km |
||

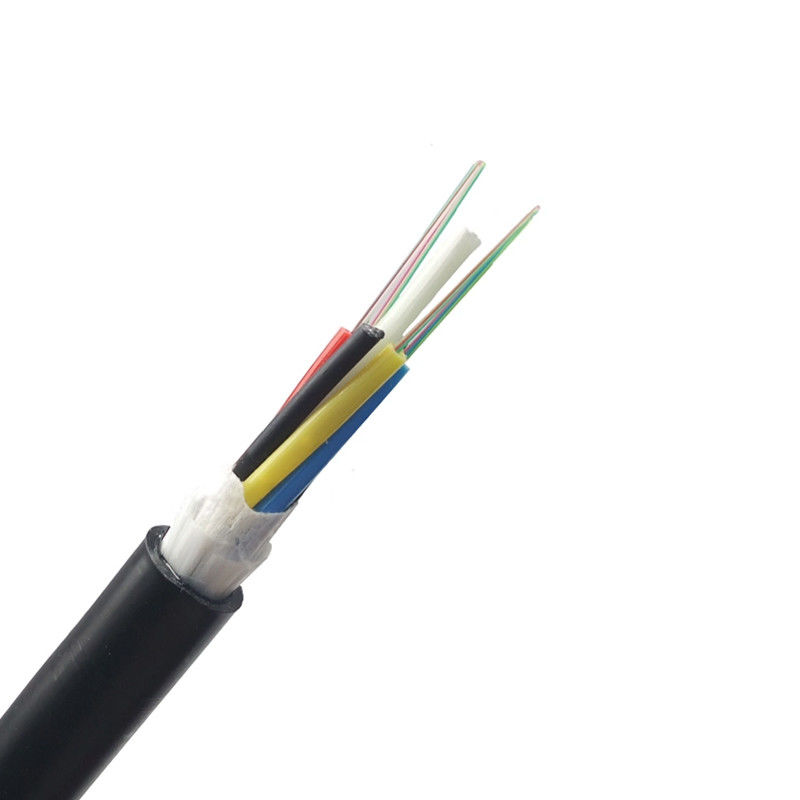

Outdoor Stranded Loose Tube Duct Non-armored Fiber Optic Cable GYFTY
Description

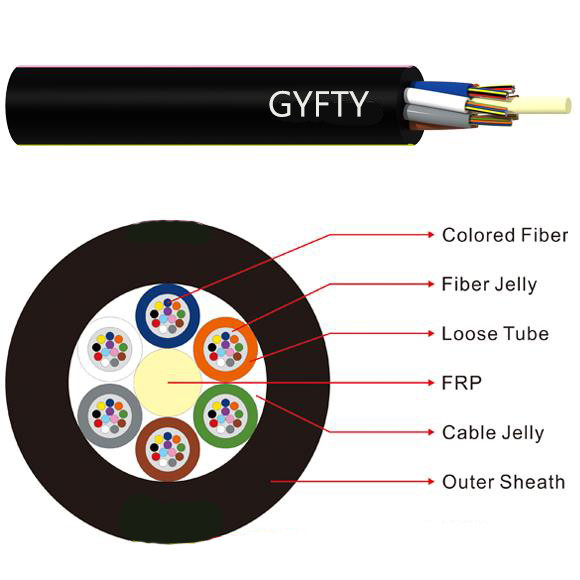

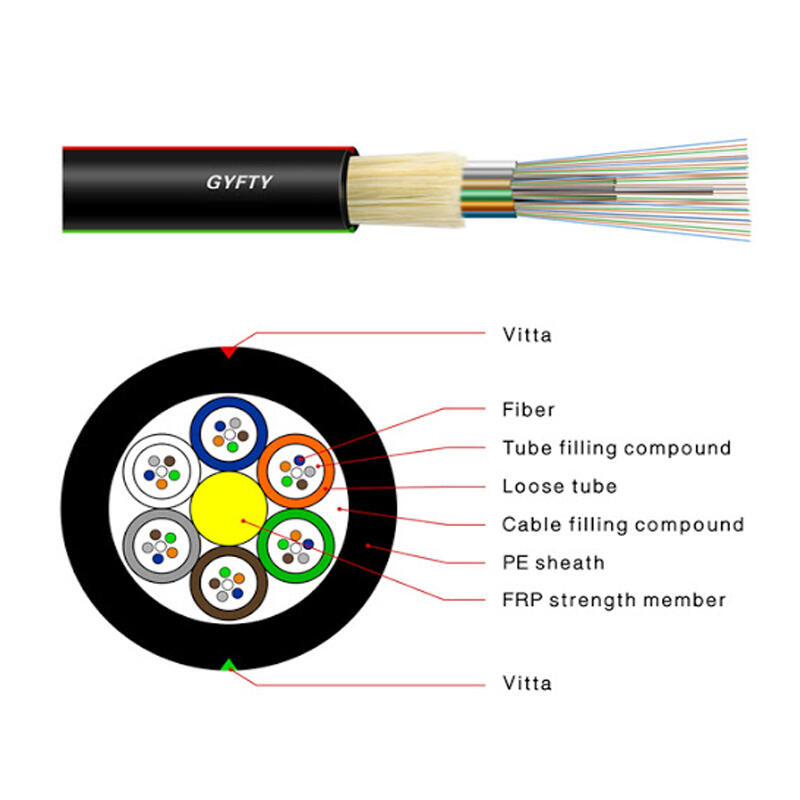

GYFTY fiber optic cable is a non-metallic cable used for power transmission system, excessive thunder areas and high electromagnetic interface. The cable tubes, which are filled with filling compound, are stranded around the FRP strength member. Then the aramid yarn is applied over water proof material, the cable is completed with a PE sheath. GYFTY cables are available from 2 core to 144 core. It is used in high-voltage area for long distance aerial or duct application..
Features
Good mechanical and temperatureperformance
High strength looes tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| (+20℃) | @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
Technical Parameters
| Cable Type mm | Fiber Count | Tubes | Fillers | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static /Dynamic |
| GYFTY-2~6 | 2~6 | 1 | 5 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
| GYFTY-8~12 | 8~12 | 2 | 4 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
| GYFTY-14~18 | 14~18 | 3 | 3 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
| GYFTY -20~24 | 20~24 | 4 | 2 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
| GYFTY-26~30 | 26~30 | 5 | 1 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
| GYFTY-32~36 | 32~36 | 6 | 0 | 10.6 | 88 | 400/1000 | 300/1000 | 10D/20D |
| GYFTY-2~6 | 2~6 | 1 | 6 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-8~12 | 8~12 | 2 | 5 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-14~18 | 14~18 | 3 | 4 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-20~24 | 20~24 | 4 | 3 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-26~30 | 26~30 | 5 | 2 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-32~36 | 32~36 | 6 | 1 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-38~42 | 38~42 | 7 | 0 | 11 | 97 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-44~48 | 44~48 | 4 | 2 | 12 | 113 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-50~60 | 50~60 | 5 | 1 | 12 | 113 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-62~72 | 62~72 | 6 | 0 | 12 | 113 | 600/1500 | 300/1000 | 10D/20D |
| GYFTY-2~6 | 2~6 | 1 | 7 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-8~12 | 8~12 | 2 | 6 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-14~18 | 14~18 | 3 | 5 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-20~24 | 20~24 | 4 | 4 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-26~30 | 26~30 | 5 | 3 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-32~36 | 32~36 | 6 | 2 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-38~42 | 38~42 | 7 | 1 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-44~48 | 44~48 | 8 | 0 | 12 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-50~60 | 50~60 | 5 | 2 | 13 | 137 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-62~72 | 62~72 | 6 | 1 | 13 | 137 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-74~84 | 74~84 | 7 | 0 | 13 | 137 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-86~96 | 86~96 | 8 | 0 | 13.9 | 154 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-98~108 | 98~108 | 9 | 1 | 15.3 | 185 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-110~120 | 110~120 | 10 | 0 | 15.3 | 185 | 1000/3000 | 300/1000 | 10D/20D |
