| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SKYLYNN or OEM, ODM |
| Certification: | ISO, ROHS, CE |
| Minimum Order Quantity: | 2KM |
| Packaging Details: | WOODEN DRUM |
| Delivery Time: | 5-10 DAYS |
| Payment Terms: | T/T, L/C, WEST UNION |
| Supply Ability: | 100,000 cores |
| Model NO.: | GCYTXTY/GCYFTY | Delivery: | EXW/FOB/CIF Etc. |
|---|---|---|---|
| Country Of Origin: | GUA, CN | ||
| High Light: | G652D Outdoor Optical Fiber Cable,G657A1 Outdoor Optical Fiber Cable,direct burial fiber 24 core OM3 |
||
Non-metallic Air Blown Micro Fiber Optic Cable
Description

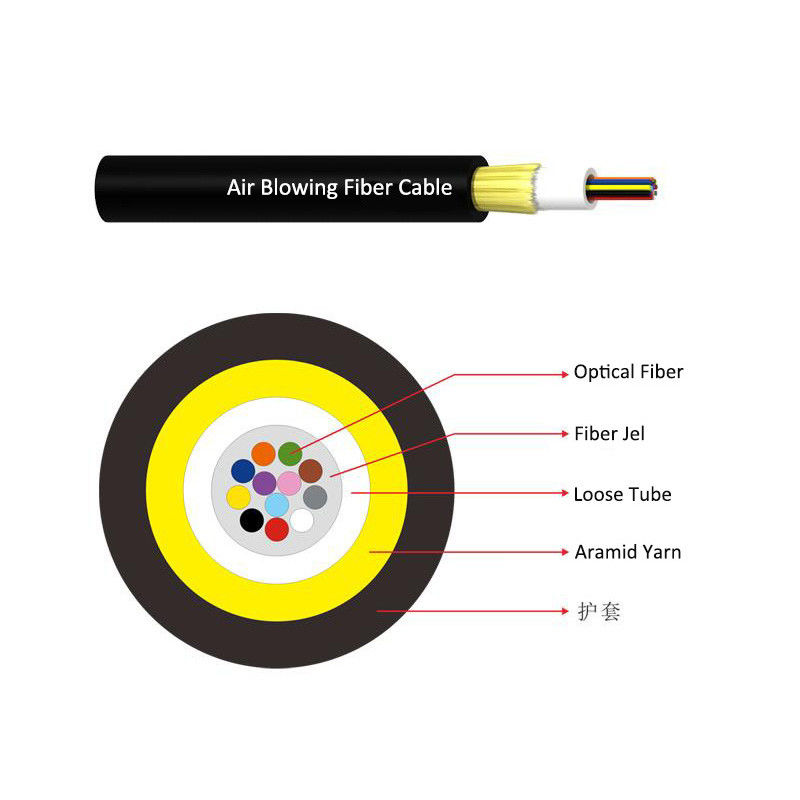

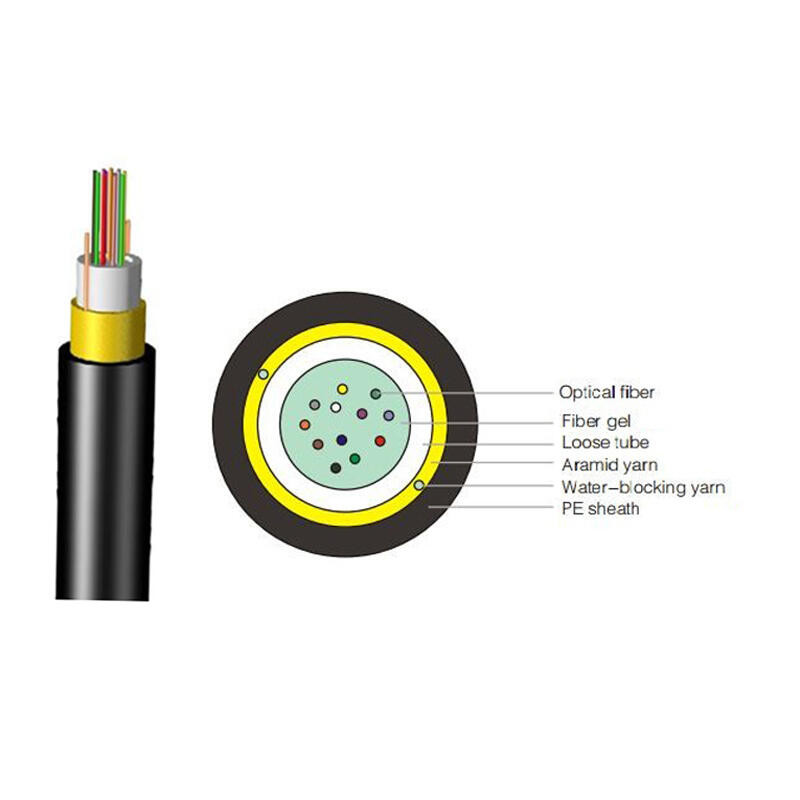

Conventional center tube micro cable, 2 to 24 fibre 250 µm Micro Fiber Optic Cables with aramid strength members and single LSZH jacket. The cables consist of 2 to 24, 250 µm OM1, OM2, OM3, OM4 multimode or ITU-T G.652D, ITU-T G.657A1 or ITU-T G.657A2 single mode optical fibres in a 2.95 mm Low Smoke Zero Halogen (LSZH) inner jacket with aramid strength members.
Feature
Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | |||
| Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |||
| (+20℃) | @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | ||||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | ||||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | ||||
Technical Parameters
| P/N | Fiber count | Nominal diameter | Nominal weight | Max tensile strength | Temperature |
| (F) | (mm) | (kg/km) | (N) | (℃) | |
| MICROC-2G652D-PE | 2 | 4.0±0.1 | 10 | 120 | -40 to +60 |
| MICROC-4G652D-PE | 4 | 4.0±0.1 | 10 | 120 | |
| MICROC-6G652D-PE | 6 | 4.0±0.1 | 10 | 120 | |
| MICROC-8G652D-PE | 8 | 4.0±0.1 | 10 | 120 | |
| MICROC-12G652D-PE | 12 | 4.0±0.1 | 10 | 120 | |
| MICROC-24G652D-PE | 24 | 4.5±0.1 | 14 | 150 |
BLOWING PERFORMANCE:
| Fiber count (F) | Blowing machine | Suitable microduct (mm) | Blowing pressure (bar) | Blowing distance in 7/5.5 duct (m) | Blowing distance in 10/8 duct (m) |
| 2 to 12 | PLUMETTAZ PR-196 | 7/5.5 or 10/8 | 15 | 1500 | 2500 |
| 14 to 24 | or PR-140 | 7/5.5 or 10/8 | 1300 | 2200 |
